Baja Designs Squadron 2.0 Sport A-Pillar Light Kit Ford Bronco & Bronco Raptor

SKU: 440088
No reviews
$ 375.95
Lens Pattern
Color
Wiring Type

SPECIAL ORDER

Please allow 1 - 3 weeks for this item to fulfill.

Product Details

  • Type LED A-Pillar Kit
  • Vendor Baja Designs
  • SKU 440088
  • UPC 810160466093
  • Shipping Weight 4.0 lb
Description Fitment Shipping

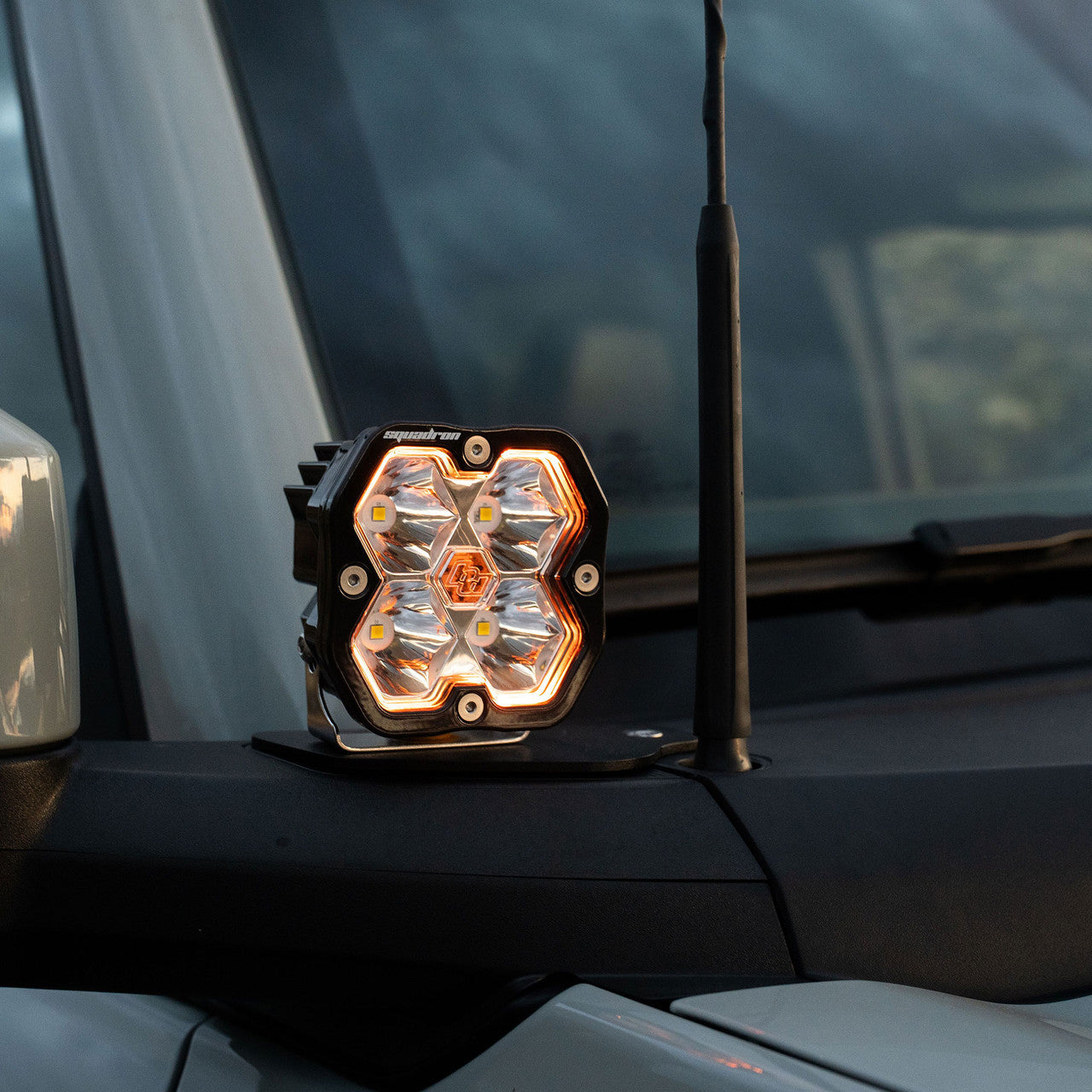

The Baja Designs Squadron 2.0 Sport A‑Pillar LED Light Kit is the ultimate upgrade for the Ford Bronco and Bronco Raptor owners who want significantly more trail visibility while keeping their lighting package sleek and compact. Purpose‑built for the Bronco, this complete two‑light kit is engineered to complement the truck’s body lines and deliver maximum performance exactly where you need it. With mounting brackets included, an option for an upfitter or toggle harness, and all essential hardware, installation is seamless and straightforward.

Completely redesigned from the inside out, the Squadron 2.0 Sport features next‑generation optics and an impressive 3,200 lumens at 30W each, and a 35% increase in performance over the previous generation—while delivering improved beam control and higher efficiency.  The refined optical system projects a cleaner, farther‑reaching, and wider beam while minimizing unwanted spill, giving enthusiasts more usable illumination for any terrain. Whether you're tackling tight wooded trails, exploring open desert, or logging miles on long road trips, the Squadron 2.0 Sport provides unmatched clarity and confidence when the sun goes down.

New enhancements include updated lens patterns optimized for the redesigned optics, a durable 4‑pin Deutsch connector, and an all‑new RGB backlight with nine selectable colors to match your vehicle's style. Enhanced uService® features clip‑in reflectors for secure, simple lens swaps, paired with a redesigned gasket for superior sealing and long‑term weather protection. A newly engineered mounting bracket offers increased vertical adjustability, giving Bronco owners more precise aiming and expanded field of view—ideal for spotting hazards and obstacles on the trail. Backed by our 30‑Day Satisfaction Guarantee and Limited Lifetime Warranty, this A‑Pillar kit delivers premium performance, rugged reliability, and peace of mind for every adventure.

Squadron 2.0 Sport Features:

  • Refined beam pattern provides greater distance, wider coverage, and reduced light spill
  • Color selectable backlight with 9 selectable colors to match any vehicle
  • New clip‑in reflectors stay secure during lens changes, improving uService®
  • New gasket design improves sealing and protection against the elements
  • Redesigned mounting bracket allows greater vertical adjustability
  • Standard 4‑pin Deutsch-style connectors for improved wiring harness durability


Specifications (Per Light):

  • Lumens: 3,200
  • Watts/Amps: 30W/2.2A @13.8V
  • Operational Voltage: 12-32V
  • IP69K Rated

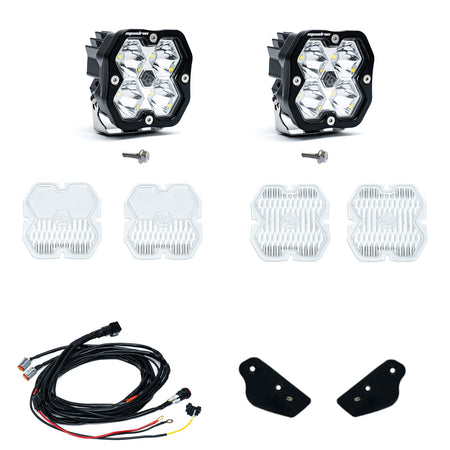

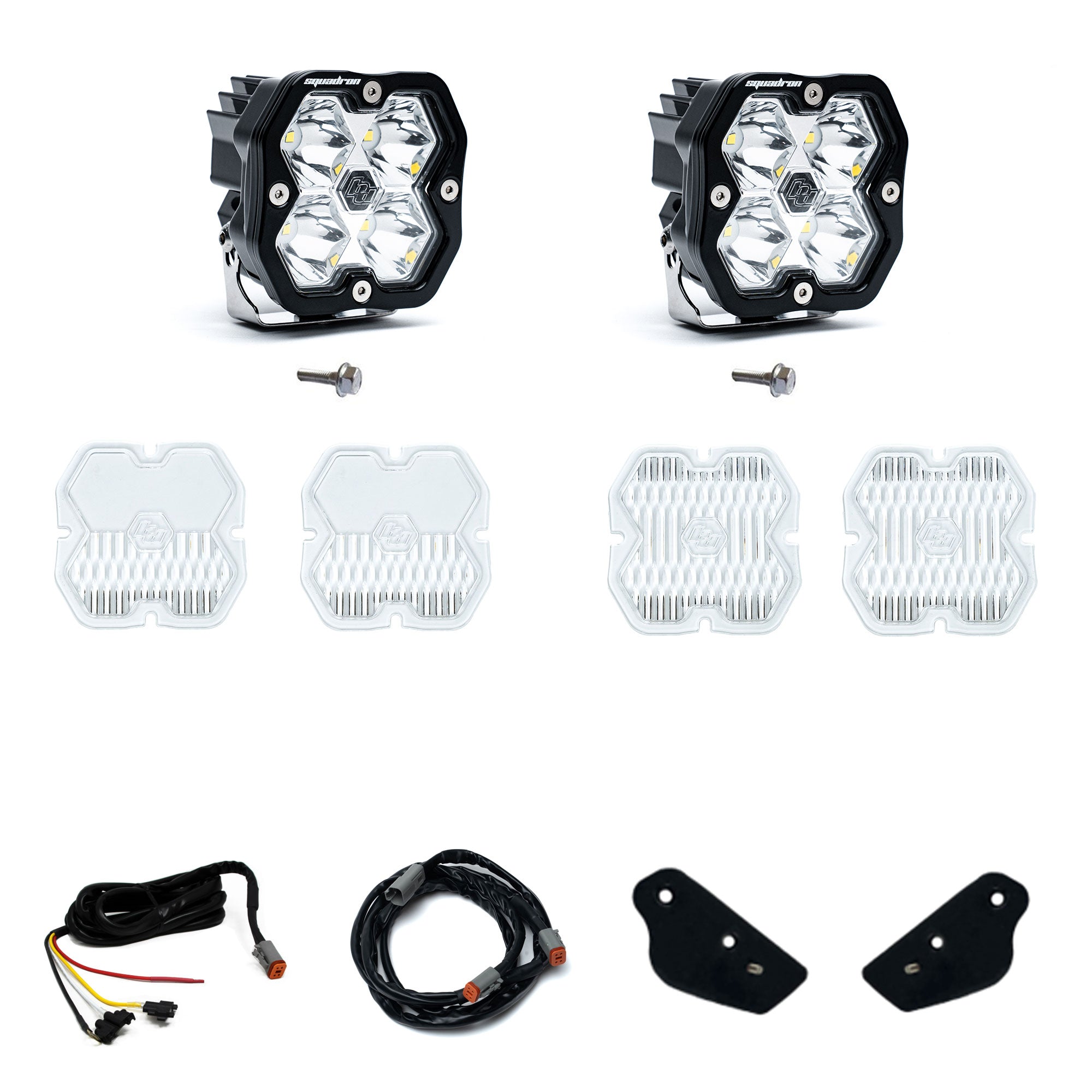

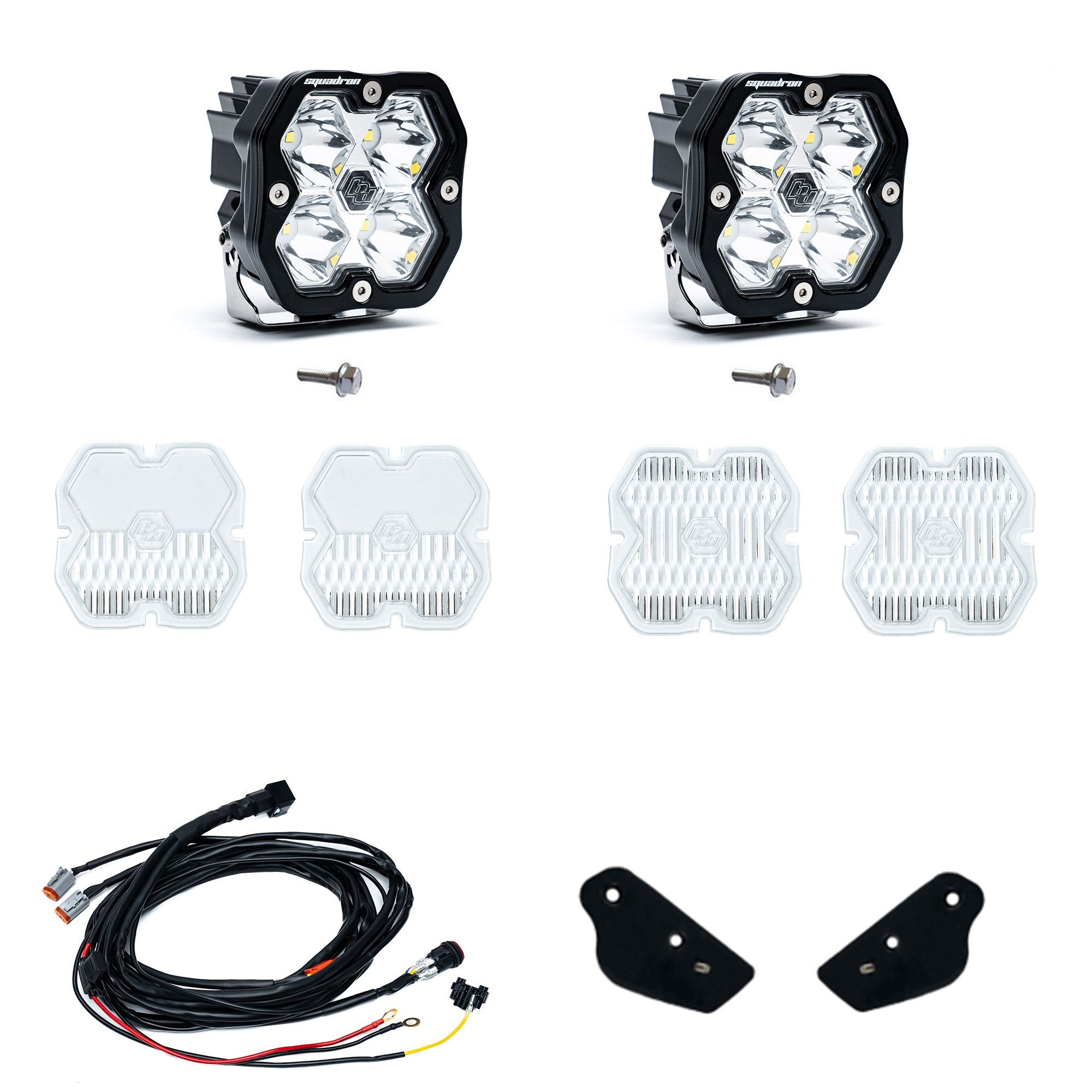

Includes:

  • (2x) Squadron 2.0 Sport (Clear/Spot)
  • (2x) A-Pillar Plates
  • (1x) Toggle Switch 4-pin Harness or Upfitter Harness
  • (1x) Deutsch 4-Pin 55" Splitter (upfitter kit only)
  • (2x) Squadron 2.0 Lens Kit (Clear/Driving Combo)
  • (2x) Squadron 2.0 Lens Kit (Clear/Wide Cornering)
  • All necessary mounting hardware

The Baja Designs Advantage:

  • Satisfaction Guarantee – 30-Day Money Back Guarantee
  • Limited Lifetime Warranty – Complete Purchase Protection
  • uService® – Replaceable Lenses And Optics
  • ClearView – All The Light, Right Where You Need It
  • MoistureBlock – Waterproof, Rain Proof, Submersible
  • CopperDrive – Safely Driving LEDs at 100%
  • 5000K Daylight – Less Driver Fatigue, Natural Color

  • Improved performance – Pro 41%/ Sport 35% performance increase over Squadron 1.0
  • All new color selectable backlight – industry leading 9-selectable backlight colors in a 3” light package
  • Improved uService functionality includes new clip-in reflectors that won’t fall out and new lens gasket improves sealing out the elements reducing pinched o-rinigs/sealing failures
  • 4-pin Deutsch-style connectors are standard on wire harness
  • Redesigned universal bracket allows for increased vertical light adjustment
  • Updated lens patterns/designs for increased performance
  • Newly designed vehicle-specific kits (VSKs)

The next generation of Baja Designs

HIGH OUTPUT PERFORMANCE: The Squadron 2.0 Sport produces 3,200 lumens at 30W. Next-generation optics throw light farther and wider while minimizing wasted spill, delivering more usable illumination exactly where you need it.

For drivers demanding maximum output, the Squadron 2.0 Pro throws 5,921 lumens at 65W a 41% increase in power over previous generation. Both configurations operate on 12-36V systems and are available in harness and non-harness pair options.

COLOR SELECTABLE BACKLIGHT:

The Squadron 2.0 features an integrated 9-color selectable backlight. Drivers can toggle between red, green, blue, magenta, cyan, amber, yellow, pink, and white, all configurable through the included harness. Color settings are retained when the light is powered off, so your setup is always ready when you are.

IMPROVED uSERVICE FUNCTIONALITY:

Updated uService® components include clip-in reflectors that stay secure during lens swaps and a new gasket design that improves sealing and long-term protection from the elements. A rugged 4-pin Deutsch-style connector replaces the previous standard for enhanced durability.

Every detail has been upgraded while maintaining the proven reliability that defines Baja Designs.

CLEARVIEW OPTICAL CONTROL:

Features Baja Designs ClearView Optics with updated reflectors and lens designs for increased usable light, improved beam pattern efficiency, and reduced driver fatigue using Baja Designs’ exclusive 5000K daylight color temperature.

CONNECTORS TO HANDLE ABUSE:  4-pin Deutsch-style connectors are now standard on every wire harness — weatherproof, vibration-resistant, and rated for the kind of punishment that kills cheap connectors.

Baja Designs 44-0088 Installation Sheet
Baja Designs 44-0088-UP Installation Sheet

LIGHTING ZONES/ LENS PATTERNS/ COLORS

  • Driving Combo

    Maximum trail coverage in a single light. The Driving/Combo pattern is equipped with both Driving (42-degree) and spot (9-degree) optics to provide you with a smooth blend of light for both near field applications and distance.

  • Spot

    A longer and narrower 9-degree beam focus for illumination further down the trail or road. The Spot pattern is designed to be used in conjunction with additional Wide Driving and/or Driving/Combo beam lights.

  • Wide Cornering

    The Wide Driving pattern offers a 42-degree flattened horizontal beam for the ultimate in comfort lighting. This pattern is specifically for cornering, dust, snow, rain, and/or fog conditions.

  • Work/Scene

    Excellent work light or “scene light” with an extremely smooth 120° circle that projects about 40ft. This pattern is not suitable for driving.

  • Trail

    Designed to aid in both vertical and horizontal light spread. Provides more near and mid-field visibility in tight slower technical terrain. (S1 only)

  • Clear

    The original performance lens. Our clear lens combined with our 5000k LEDs provides light most similar to daylight, reducing driver fatigue and increasing terrain recognition.

  • Baja Amber

    This performance-driven lens is designed for off-road driving in challenging conditions like dust, rain, snow, or fog. The Baja Amber lens minimizes glare, enhancing visibility and significantly improving your driving experience.

  • Factory Amber

    This replacement lens option is crafted to seamlessly match the OEM running lights found on vehicles today. Factory Amber provides a color temperature that is best utilized in low-visibility conditions to increase depth perception while minimizing glare.

ZONES

  • Dust/Fog

    Illuminates the area directly in front of the vehicle, for use during rainy, snowy, or dusty conditions.

    Automotive, Motorcycle, UTV

  • Cornering

    Provides cornering and peripheral light, which is necessary to drive comfortably at speed.

    Automotive, Motorcycle, UTV

  • Driving Combo

    Your primary driving light and most important zone to start with when building a balanced lighting package.

    Automotive, Motorcycle, UTV

  • Spot

    This zone is your first level of long-distance lighting. Lights intended for this zone will give you the distance needed to travel at speeds and see safely down the road or trail.

    Automotive, Motorcycle, UTV

  • Racer Edition Spot

    This zone is implemented when approaching triple-digit speeds, or in instances when distance penetration becomes necessary.

    Automotive, Motorcycle, UTV

  • Rock Light

    This zone illuminates the wheel wells, undercarriage, or any other part of the vehicle that can benefit from great visibility while moving through tight spaces and jagged terrain.

    Automotive, UTV

  • Cargo

    This zone is important for drivers that need quick access to tools and cargo, in and immediately around the vehicle.

    Automotive, UTV

  • Backup/Reverse

    This zone is crucial to keeping the backside of your vehicle safe. Whether reversing on the trail or leading a pack through the dust, you will want the correct lighting solution.

    Automotive, UTV

  • Laser Series

    This zone is one of the last additions to your lighting package. When you have optimized your entire package and still need that extra punch in the distance, make sure to check out the ultimate distance lighting available today.

    Automotive, UTV
