Product Details

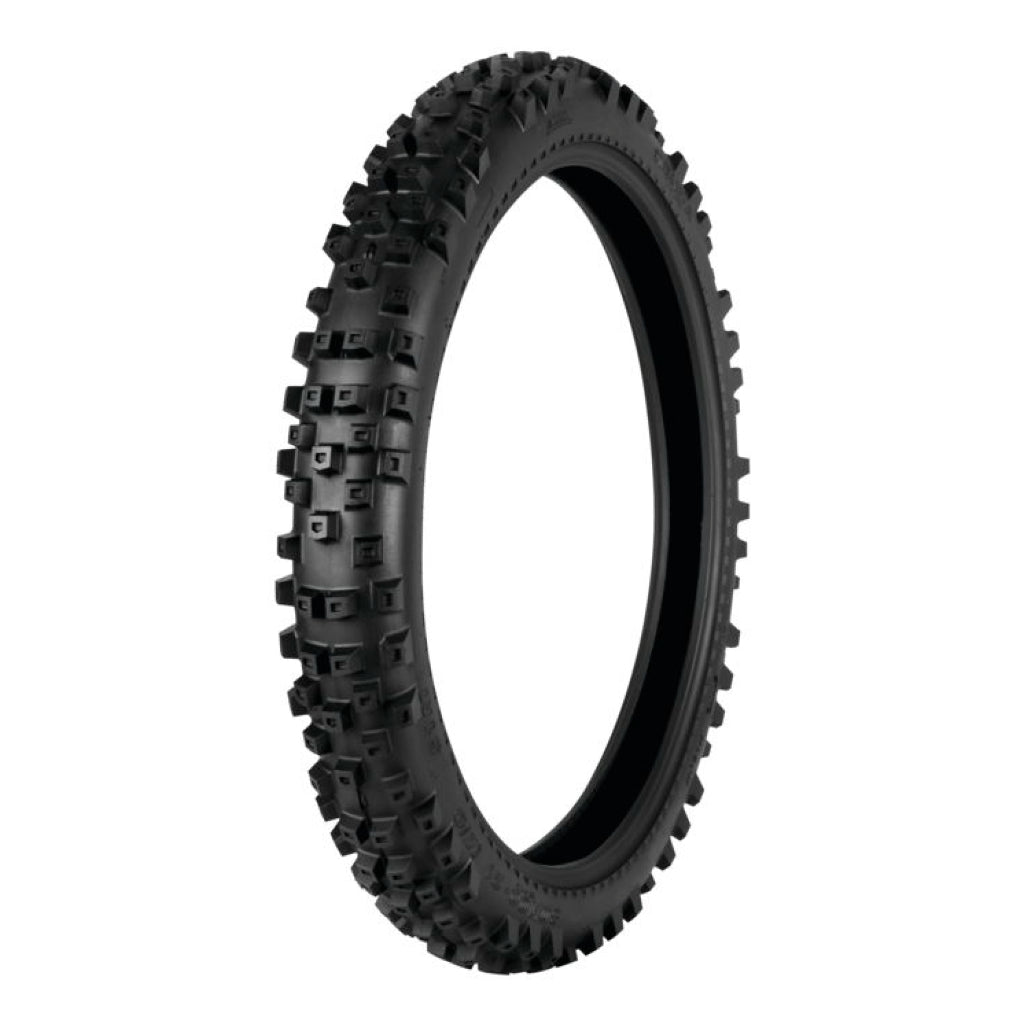

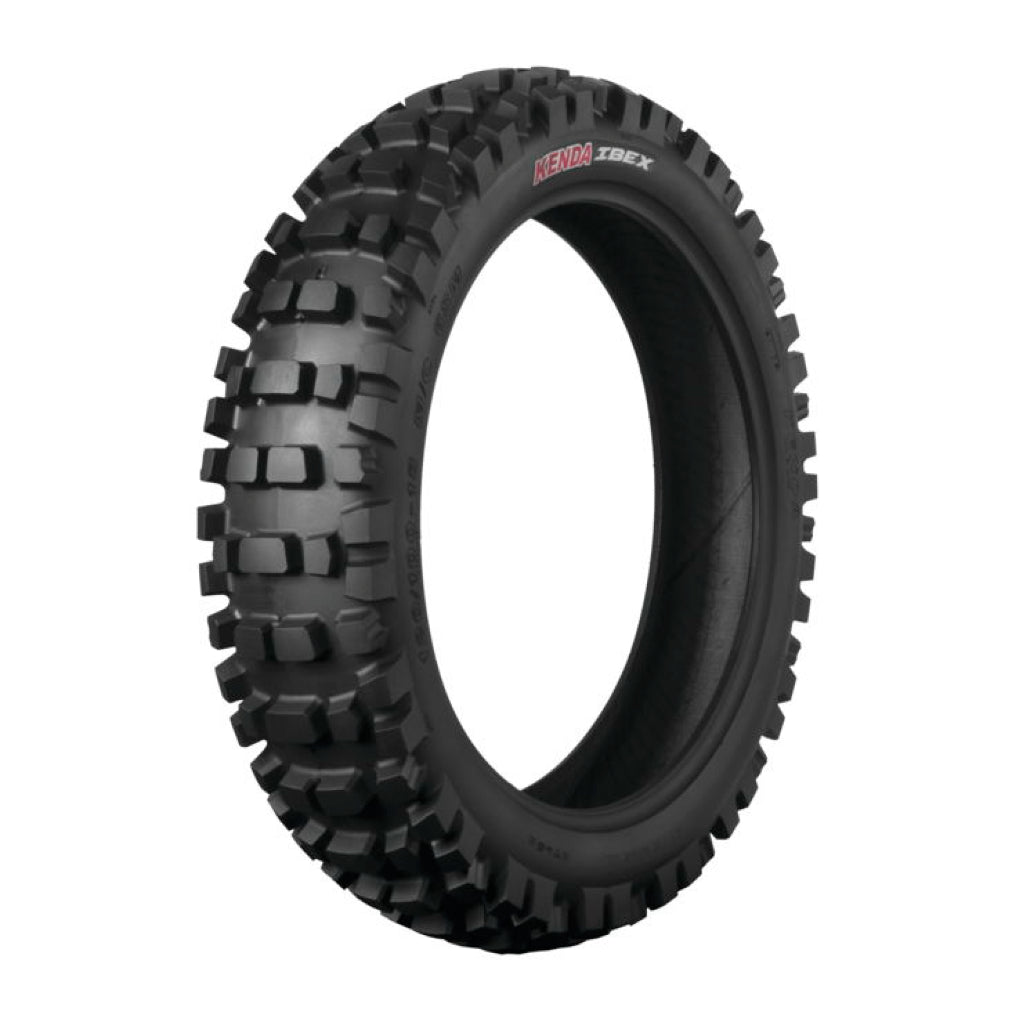

Designed for Endurocross and extreme enduro-type conditions.
Super-soft and flexible rubber compound for maximum bump absorption and terrain compliance for obstacles like rock gardens and log crossings. Shoulder knob pattern designed for large contact patch and support for soft compound during cornering.
A: Width (120/80-19)
Width of the tire, typically in millimeters, from sidewall across the tread to the opposite sidewall.
B: Aspect Ratio (120/80-19)
The height of the cross-sectional profile expressed as a % of the width of the tire
C: Rim Size (120/80-19)
The third number is the diameter of the wheel in inches.
Example: 120/80-19 or A/B-C [ The width(A) of the tire is 120mm. The sidewall height(B) is 80% of 120 or 96mm. And it fits a 19in wheel(C) ]
Front
| Metric | Alpha | Inch |
|---|---|---|
| 60/100 | 90/80 | 2.50/2.75 |
| 70/100 | 90/90 | 2.75/3.00 |
| 80/90 | MH | 2.50/2.75 |
| 80/100 | 100/80 | 3.00/3.25 |
| 90/90 | MJ90 | 2.75/3.00 |
| 100/90 | MM90 | 3.25/3.50 |
| 110/90 | MN90 | 3.75/4.00 |
| 120/80 | N/A | 4.25/4.50 |
| 120/90 | MR90 | 4.25/4.50 |
| 130/90 | MT90 | 5.00/5.10 |
Rear
| Metric | Alpha | Inch |
|---|---|---|
| 80/100 | 80/90 | 2.50/3.60 |
| 90/100 | 110/90 | 3.60/4.10 |
| 100/100 | 120/80 | 4.00/4.10 |
| 110/90 | MP85 | 4.50/4.75 |
| 110/100 | 130/80 | 4.00/4.50 |
| 120/90 | MR90 | 4.50/4.75 |
| 120/100 | 140/80 | 5.00/5.10 |
| 130/80 | N/A | 5.00/5.10 |
| 130/90 | MT90 | 5.00/5.10 |
| 140/80 | N/A | 5.50/6.00 |
| 140/90 | MU90 | 5.50/6.00 |
| 150/80 | MV85 | 6.00/6.25 |
| 150/90 | MV85 | 6.00/6.25 |
