Plow Mount Installation Instructions

FITS:
Can-Am Outlander 450 (2017-2023)
Can-Am Outlander 450 MAX (2017-2023)
Can-Am Outlander 450 6x6 (2019)
Can-Am Outlander 450 6x6 MAX (2019-2024)
Can-Am Outlander 500 (2013-2015)
Can-Am Outlander 500 MAX (2013-2015)
Can-Am Outlander 570  (2017-2023)
Can-Am Outlander 570 MAX (2016-2023)
Can-Am Outlander 570 XMR (2016-2023)
Can-Am Outlander 570 PRO NORDIC (2019)
Can-Am Outlander 570 MAX PRO NORDIC (2019)
Can-Am Outlander 650 (2013-2022)
Can-Am Outlander 650 MAX (2013-2022)
Can-Am Outlander 650 XMR (2013-2022)
Can-Am Outlander 650 6x6 (2015-2020)
Can-Am Outlander 650 6x6 MAX (2019-2024)
Can-Am Outlander 800 (2012-2015)
Can-Am Outlander 800 MAX (2013-2015)
Can-Am Outlander 800 XMR (2015)
Can-Am Outlander 850 (2016-2024)
Can-Am Outlander 850 MAX (2016-2024)
Can-Am Outlander 850 XMR (2016-2024)
Can-Am Outlander 1000 (2012-2019)
Can-Am Outlander 1000R (2019-2024)
Can-Am Outlander 1000 MAX (2013-2019)
Can-Am Outlander 1000R MAX (2019-2024)
Can-Am Outlander 1000 XMR (2013-2024)
Can-Am Outlander 1000 6x6 (2014-2019)
Can-Am Outlander 1000 6x6 MAX (2019-2024)
Can-Am Outlander L 450 (2015-2016)
Can-Am Outlander L 450 MAX (2015-2016)
Can-Am Outlander L 500  (2015)
Can-Am Outlander L 500 MAX (2015)
Can-Am Outlander L 570  (2016)
Can-Am Outlander L 570 MAX (2016)

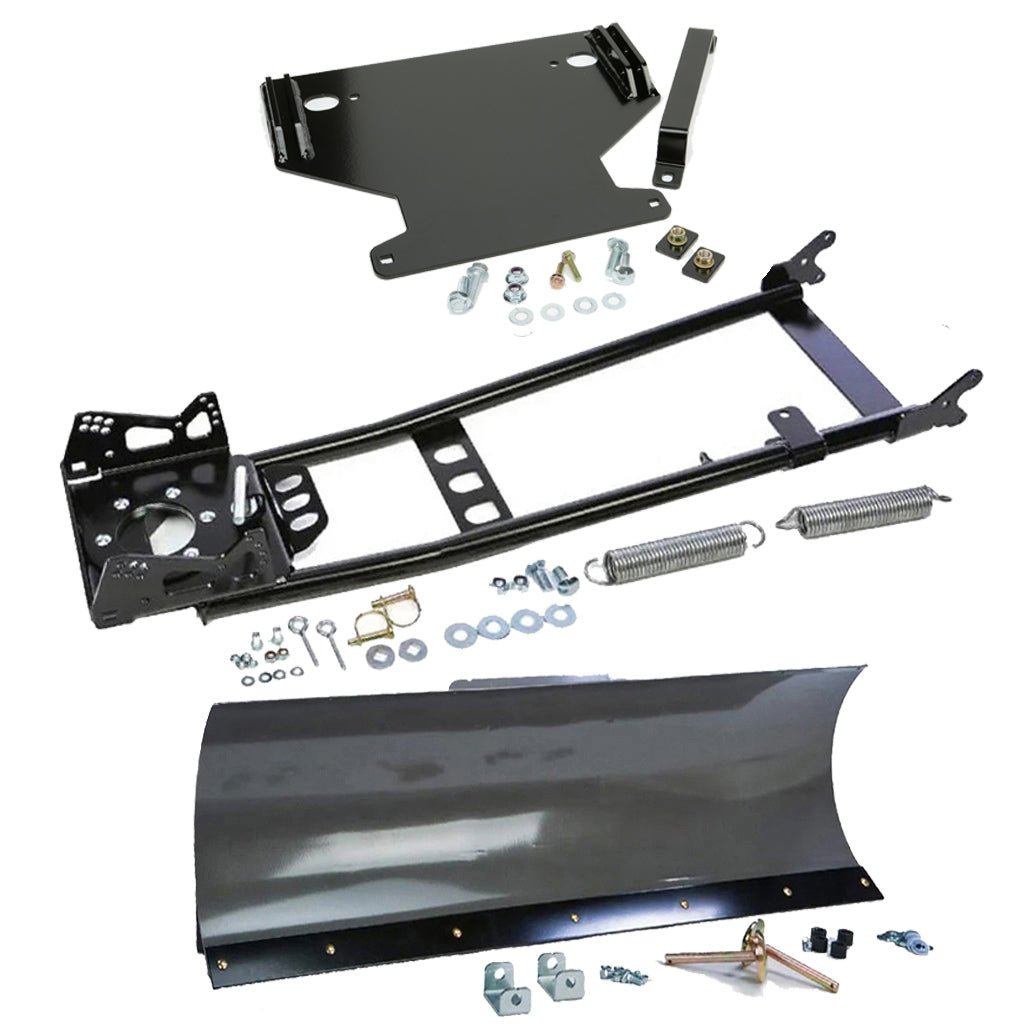

Straight Blade Specifications:
100% MADE IN USA
Pushes snow straight ahead or to the sides up to 25 degrees
Added gussets for the wider width
The 66" & 72" blades include a 7" high 2-ply top rubber flap
Measures 16” Vertical blade face height with an approximate 21 inch height with snow flap
Fully-adjustable blade skids with bolt-on brackets
Heavy duty 3"-diameter grade-50 steel skid plates
Blade Constructed of 11 ga steel
3/16" Grade 50 Ribbing for a strong bolt-up to the Swivel Tube
Unlike all other Plow competitors our Plows are metal bead blasted before they are powder coated Metallic Silver for supreme durability
2-Sided 3/16" x 3.00" Grade 50 Steel Wear Bar
Wear Bar attached with Heavy Duty Grade 8 Bolts
2-Year KFI Warranty

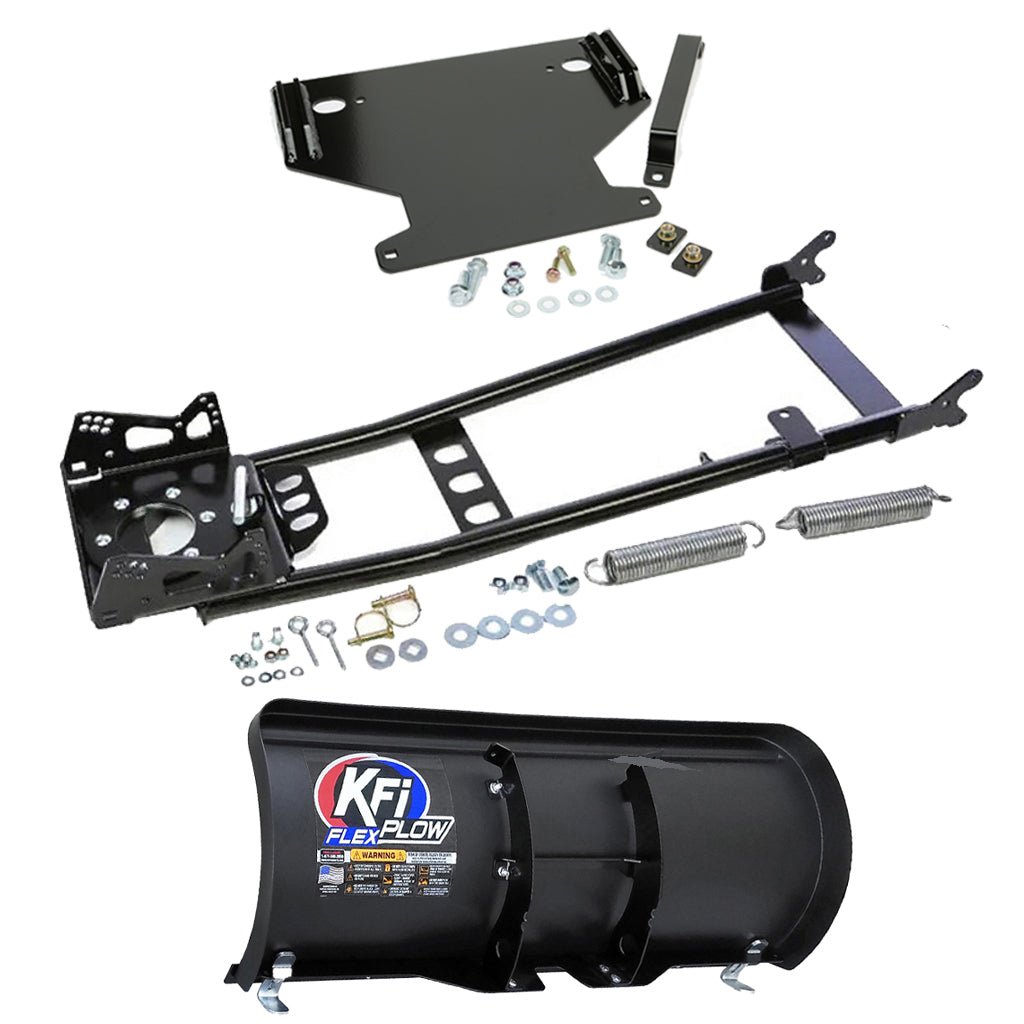

ATV Flex Plow Blade Specifications:
Rolls snow off to the side, great for continuous plowing of long driveways and paths
100% MADE IN USA
Lightweight Blade fully assembled at 25lbs.
50” width Flexible Black Poly Vacuum formed face
3/16 inch and 10 gauge Grade 50 Steel Rib and Frame construction
Shot Blasted and Powder Coated Black
2-Sided 3/16 inch Grade 50 Steel wear bar
17 inch Vertical blade face height
Works with current KFI No.105000 or 105590 ATV Tube System
1/4 inch thick Adjustable Skids
Complete installation instructions included
All mounting hardware included
1-Year KFI Warranty

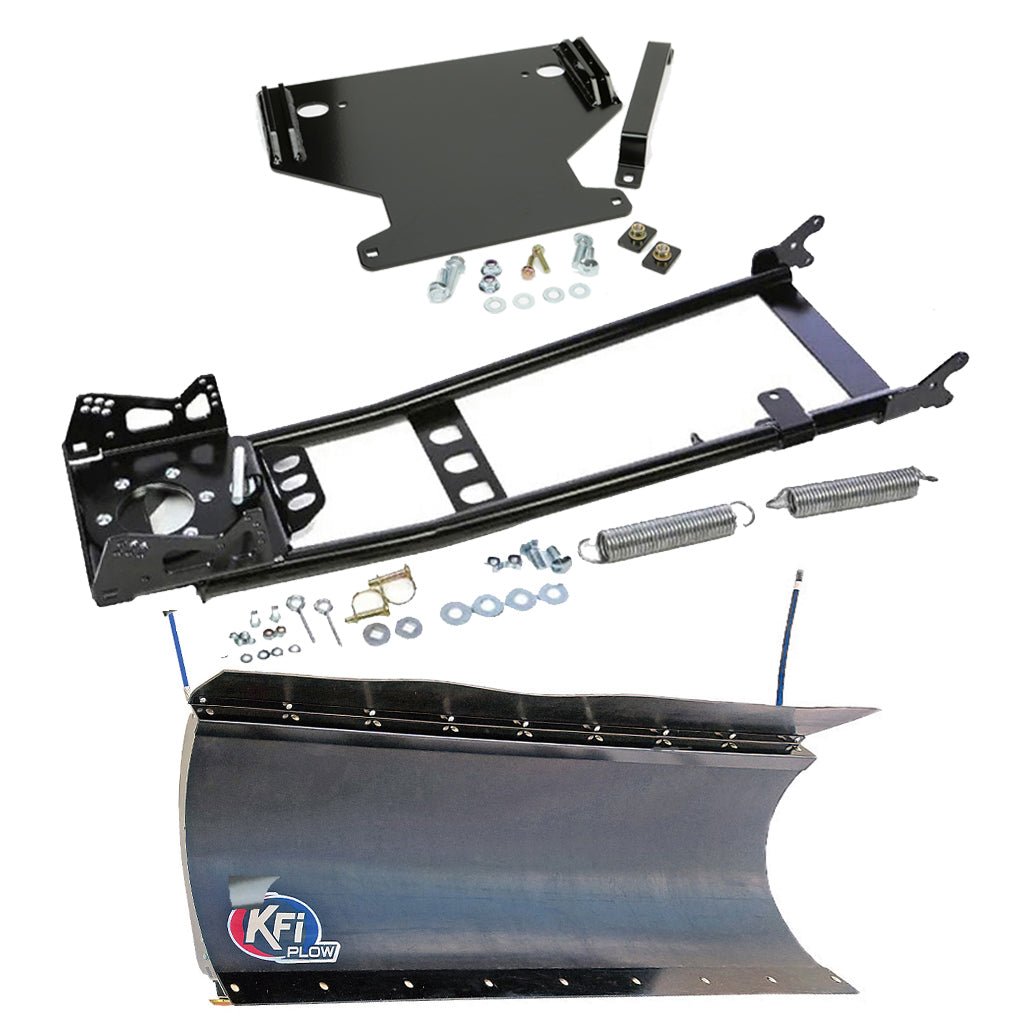

Poly Blade Specifications:
Includes a 7" high 2-ply top rubber flap
100% MADE IN USA
Dual Curvature face for supreme snow moving
Measures 21 inch Vertical blade face height with an approximate 27” height with snow flap
Fully-adjustable blade skids with bolt-on brackets
Heavy duty 3"-diameter grade-50 steel skid plates
Flexible Heavy Duty Black Poly face
3/16 inch Grade 50 Steel Rib and Frame construction
Unlike all other Plow competitors our Plows are metal bead blasted before they are Powder Coated Black for supreme durability
2-Sided 3/16" x 3.00" Grade 50 Steel Wear Bar
Wear Bar attached with Heavy Duty Grade 8 Bolts
Complete installation instructions included
Works with KFI ATV & UTV Tubes
Includes Plow Markers
2-Year KFI Warranty
