Plow Mount Installation Instructions

Winch Mount Installation Instructions

FITS:
2005 Polaris Sportsman 400, 500 H.O., 600, 700, 700EFI, 800EFI

2006 Polaris Sportsman 450, 500 H.O., 500EFI, 700, 700EFI, 800EFI, X2

2007 Polaris Sportsman 450, 500EFI, 500EFI X2, 700EFI, 800EFI, 800EFI X2

2008 Polaris Sportsman 500 HO, 500 EFI, 800 EFI HO, 500 EFI X2
2008 Polaris Sportsman 700 EFI X2, 500 EFI TOURING, 800 EFI TOURING

2009 Polaris Sportsman 500 HO, 500 EFI, 800 EFI, 500 EFI X2, 800 EFI X2
2009 Polaris Sportsman 500 EFI TOURING, 800 EFI TOURING
2009 Polaris Sportsman BIG BOSS 6x6

2010 Polaris Sportsman 500 HO, 800
2010 Polaris Sportsman 500 HO TOURING
2010 Polaris Sportsman 800 BIG BOSS 6x6

Will ONLY work with the Polaris Sportsman's that have the front end pictured below:

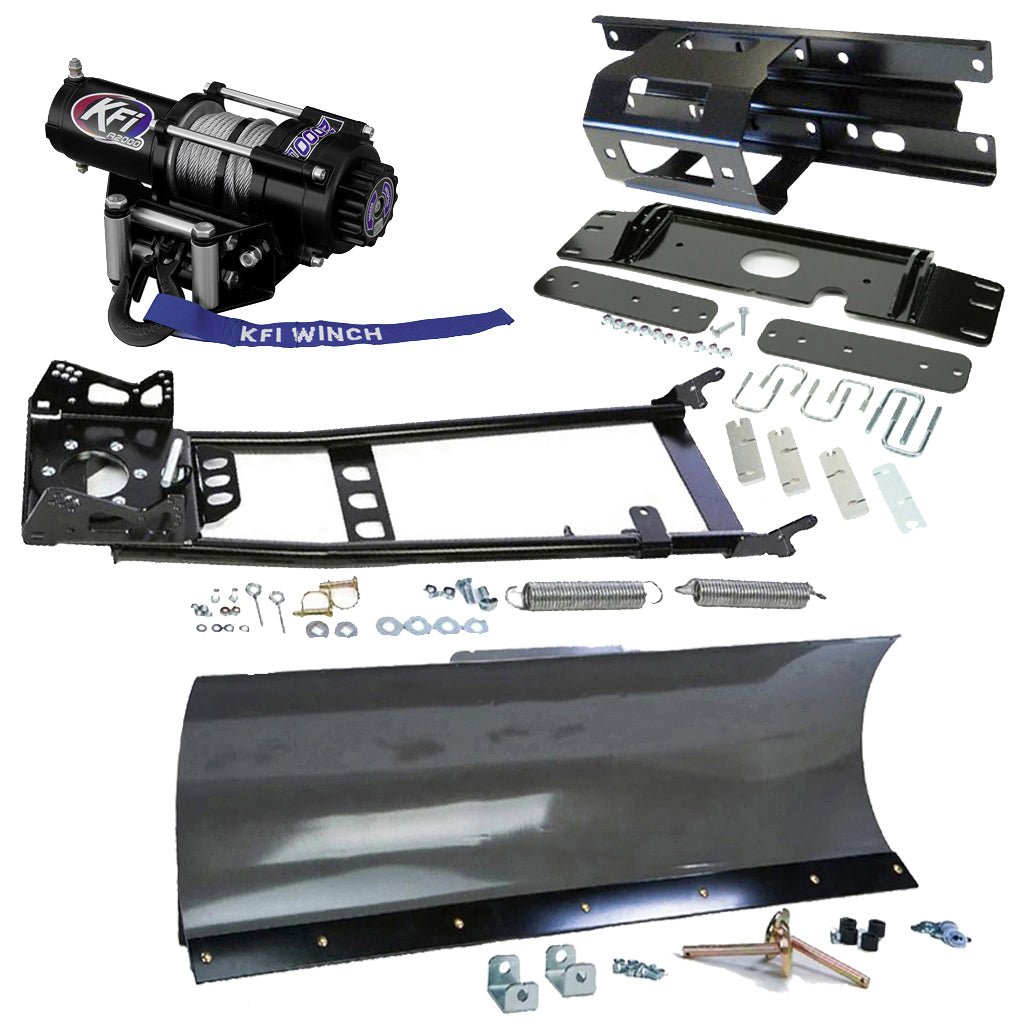

Straight Blade Specifications:
100% MADE IN USA
Pushes snow straight ahead or to the sides up to 25 degrees
Added gussets for the wider width
The 66" & 72" blades include a 7" high 2-ply top rubber flap
Measures 16” Vertical blade face height with an approximate 21” height with snow flap
Fully-adjustable blade skids with bolt-on brackets
Heavy duty 3"-diameter grade-50 steel skid plates
Blade Constructed of 11 ga steel
3/16" Grade 50 Ribbing for a strong bolt-up to the Swivel Tube
Unlike all other Plow competitors our Plows are metal bead blasted before they are powder coated Metallic Silver for supreme durability
2-Sided 3/16" x 3.00" Grade 50 Steel Wear Bar
Wear Bar attached with Heavy Duty Grade 8 Bolts
2-Year KFI Warranty

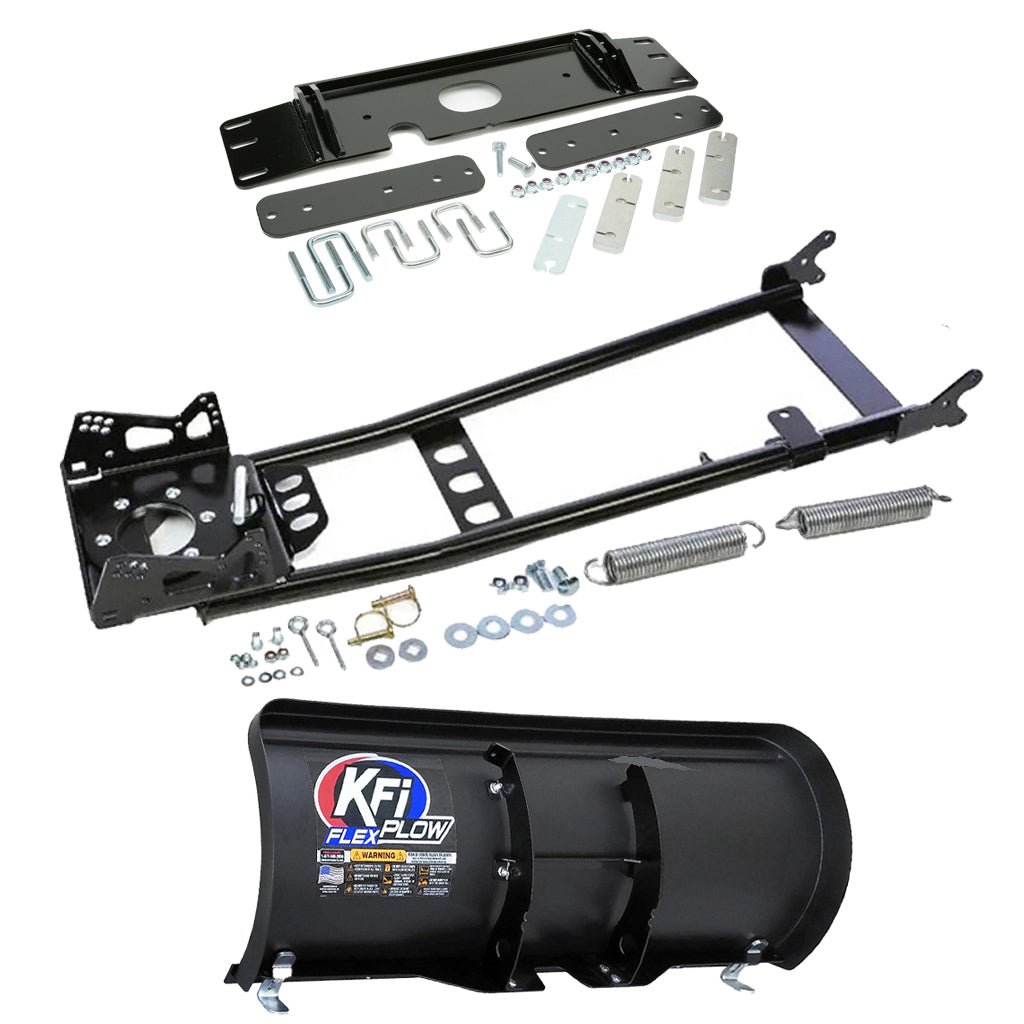

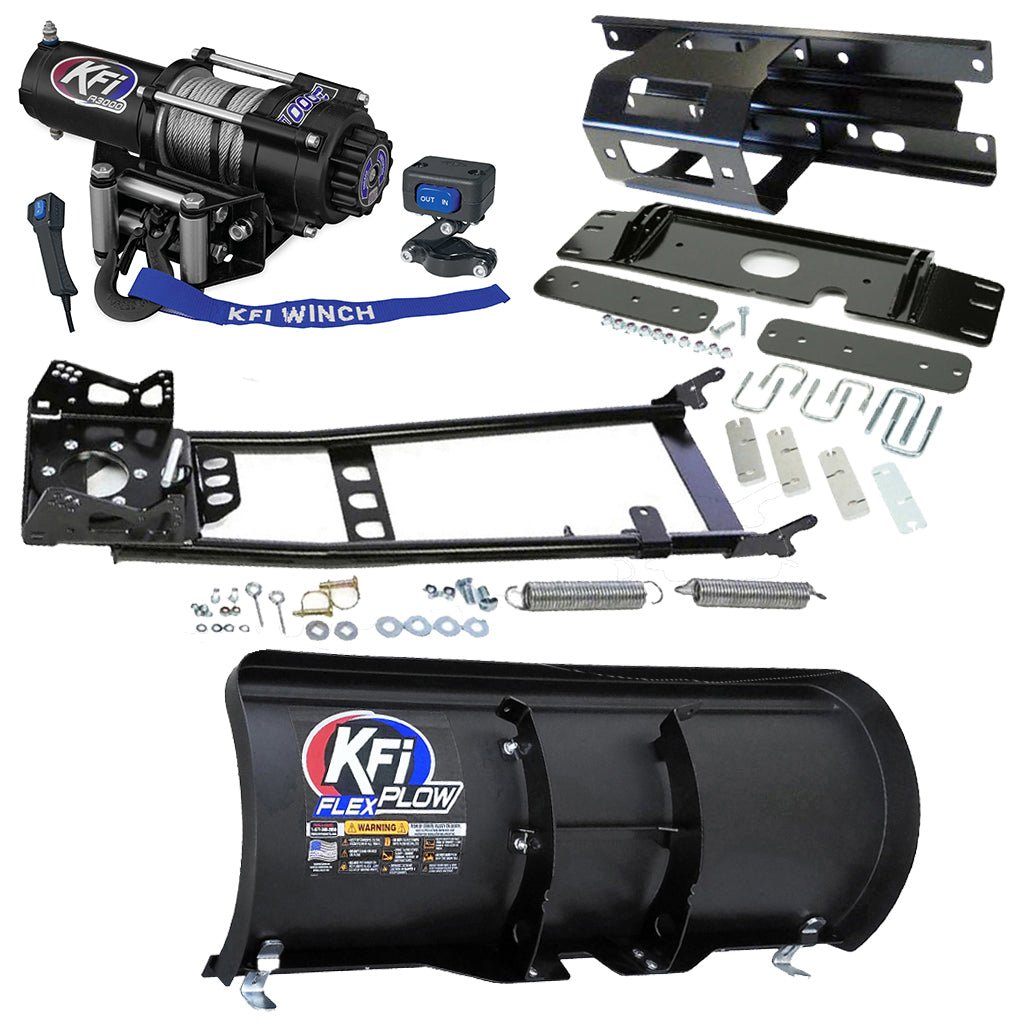

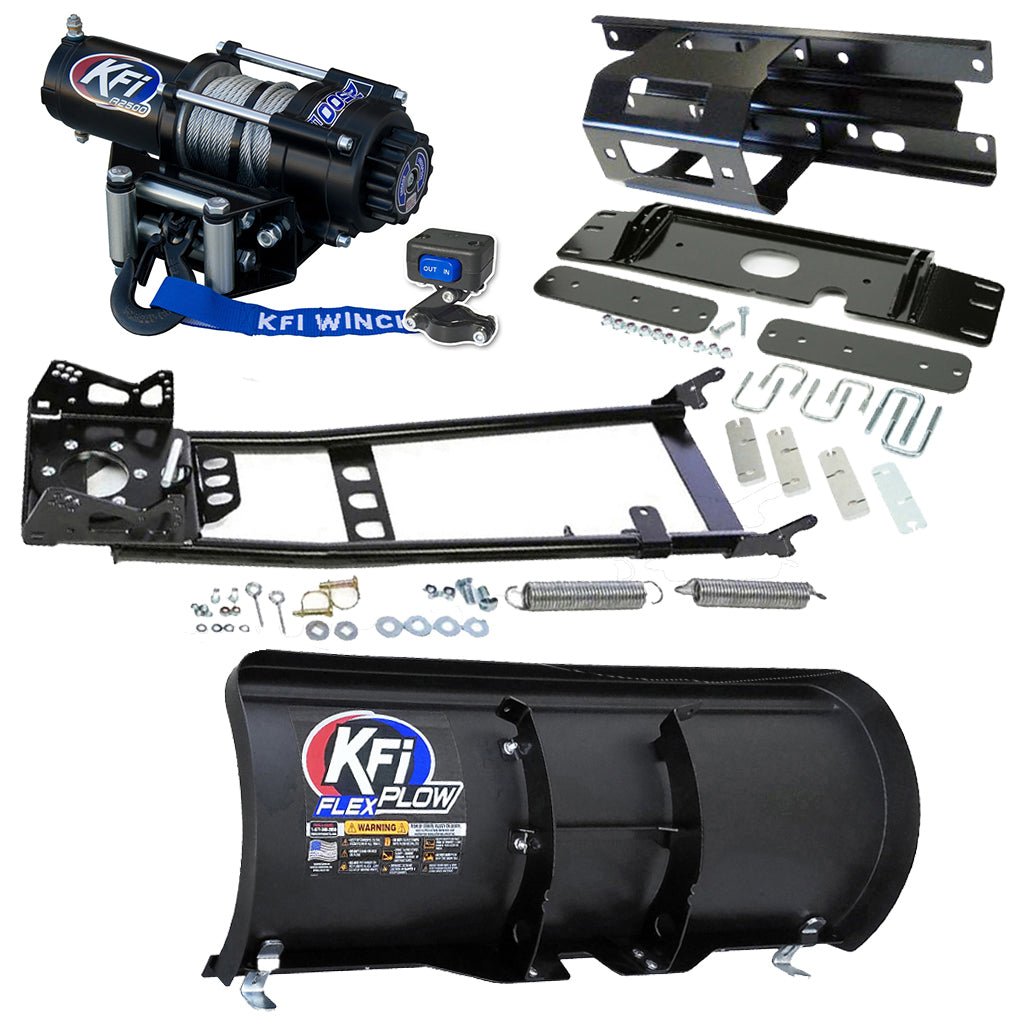

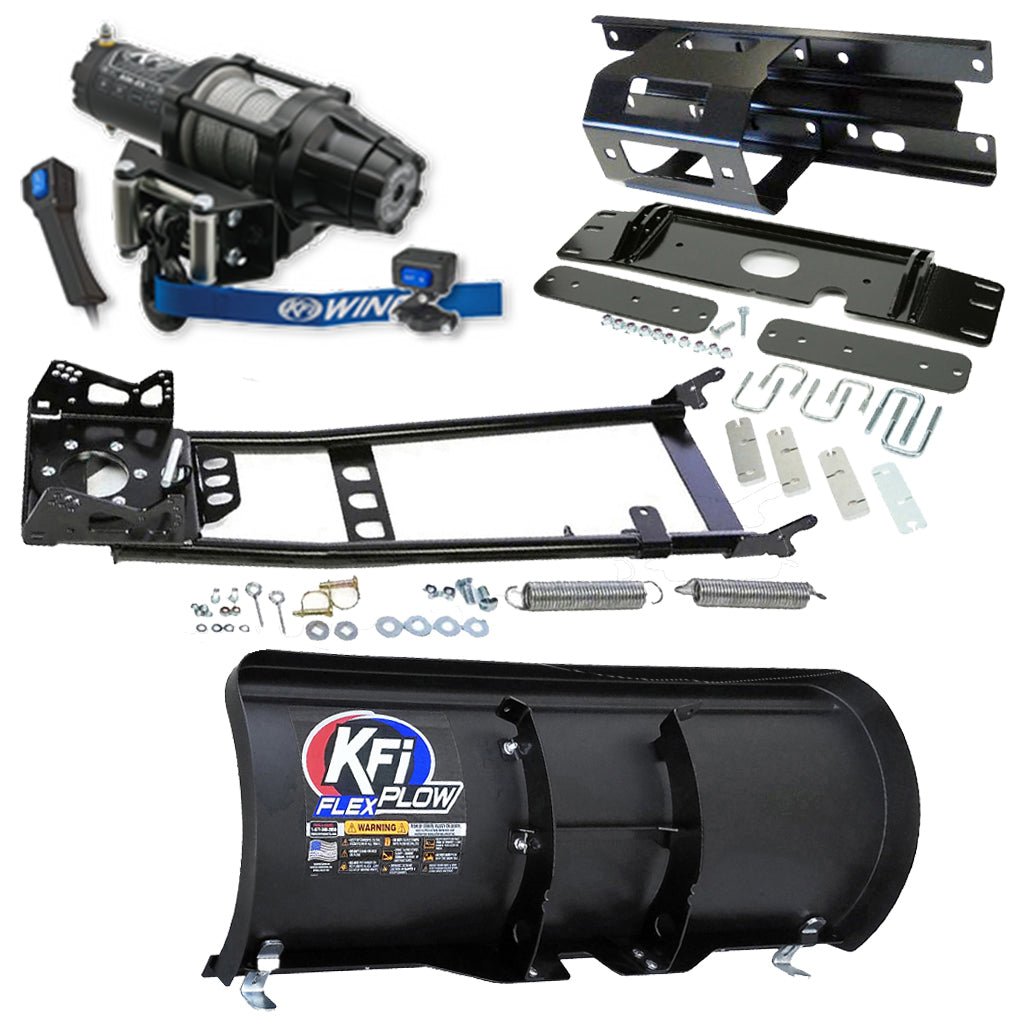

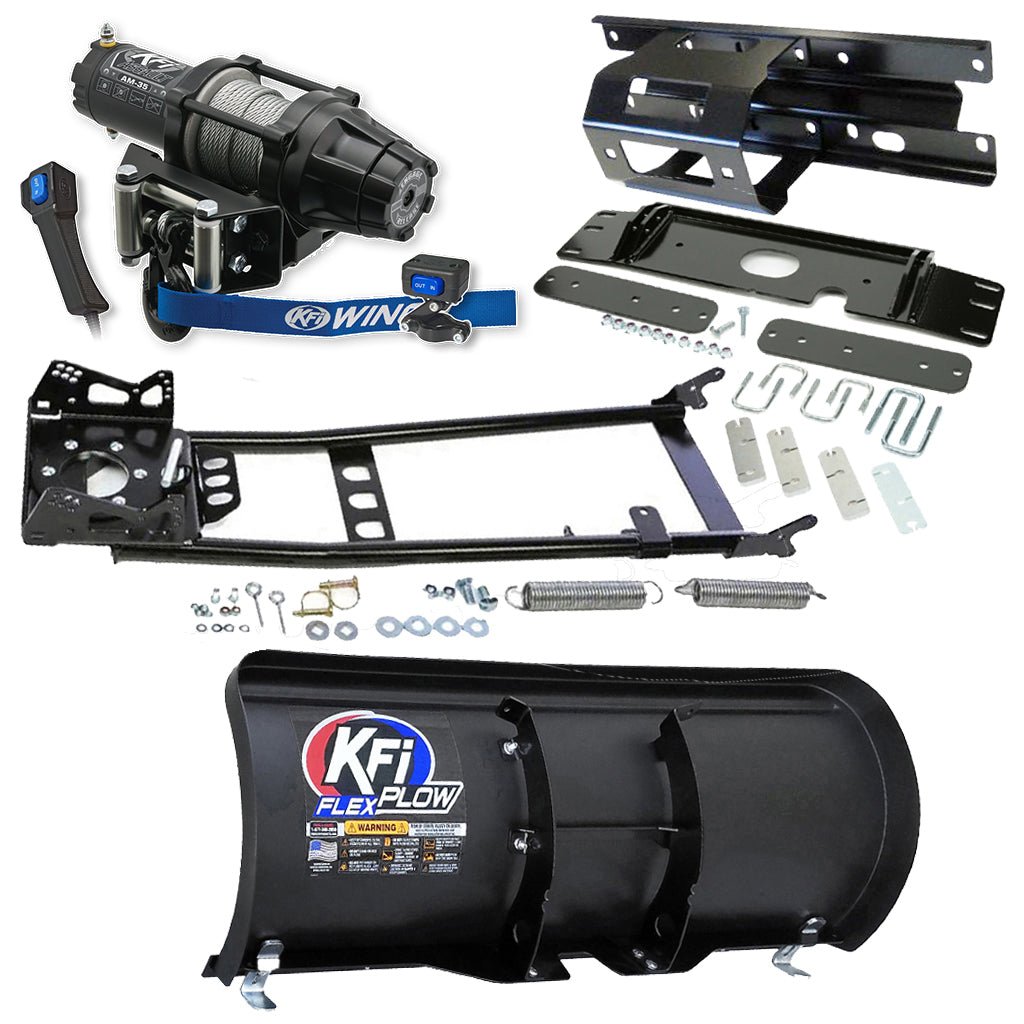

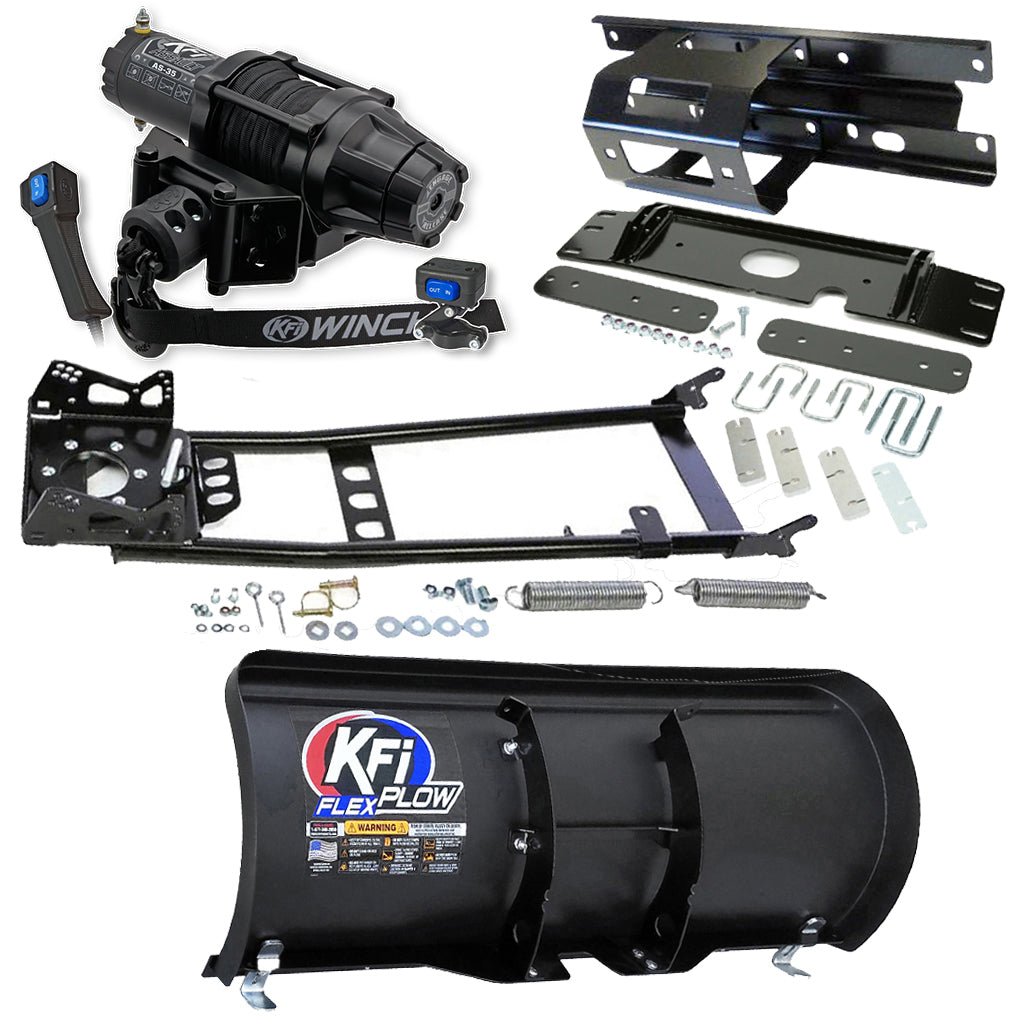

ATV Flex Plow Blade Specifications:
Rolls snow off to the side, great for continuous plowing of long driveways and paths
100% MADE IN USA
Lightweight Blade fully assembled at 25lbs.
50” width Flexible Black Poly Vacuum formed face
3/16” and 10 gauge Grade 50 Steel Rib and Frame construction
Shot Blasted and Powder Coated Black
2-Sided 3/16” Grade 50 Steel wear bar
17” Vertical blade face height
Works with current KFI No.105000 or 105590 ATV Tube System
1/4” thick Adjustable Skids
Complete installation instructions included
All mounting hardware included
1-Year KFI Warranty

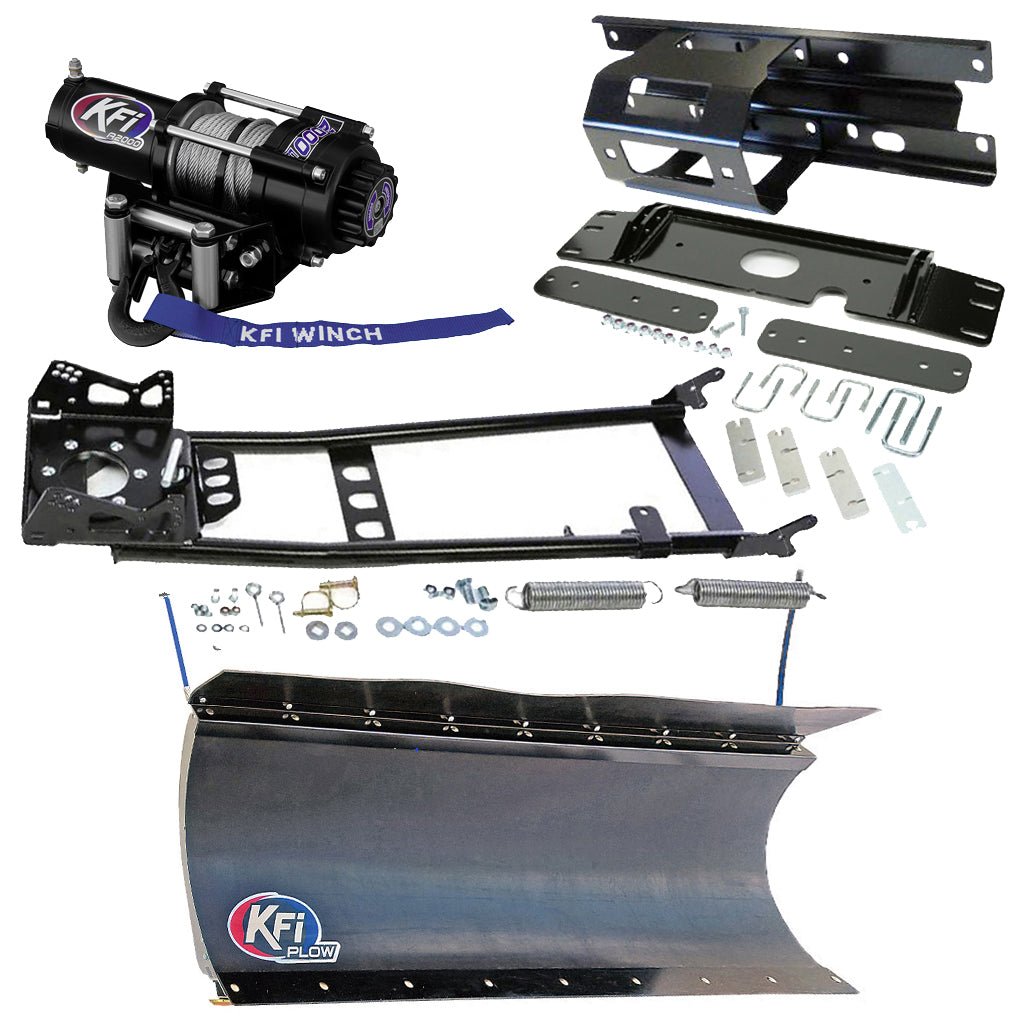

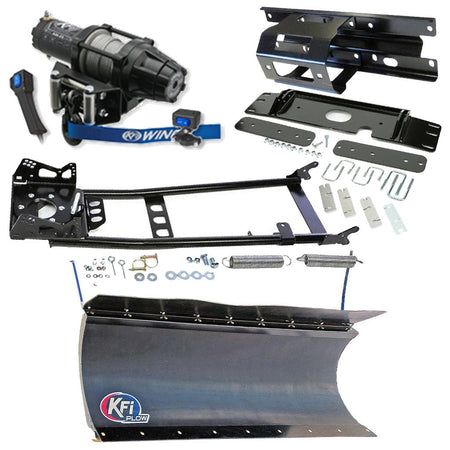

Poly Blade Specifications:
Includes a 7" high 2-ply top rubber flap
100% MADE IN USA
Dual Curvature face for supreme snow moving
Measures 21” Vertical blade face height with an approximate 27” height with snow flap
Fully-adjustable blade skids with bolt-on brackets
Heavy duty 3"-diameter grade-50 steel skid plates
Flexible Heavy Duty Black Poly face
3/16” Grade 50 Steel Rib and Frame construction
Unlike all other Plow competitors our Plows are metal bead blasted before they arePowder Coated Black for supreme durability
2-Sided 3/16" x 3.00" Grade 50 Steel Wear Bar
Wear Bar attached with Heavy Duty Grade 8 Bolts
Complete installation instructions included
Works with KFI ATV & UTV Tubes
Includes Plow Markers
2-Year KFI Warranty

KFI ATV Manual Lift Kit Specifications:
Works with KFI ATV Push Tubes: 105000 / 105760
Will work universally on most ATVs
Use with up to 60” KFI Blades
When done plowing the lift will remain with the plow tubes
Shot Blasted before powder coating
Powder Coated TOUGH - Black
Gets at least 5-1/2” of lift with around 25lbs of lift effort

KFI Winch Details
Any winch selection will also receive a winch mount. Click links below to view winch specific details.

A2000
A2500-R2
A3000
AM-25
AM-35
AS-25
AS-35
