Plow Mount Installation Instructions

FITS:

Kymco UXV 500/500i (2009-2018)

Kymco UXV 700i (2014-2017)

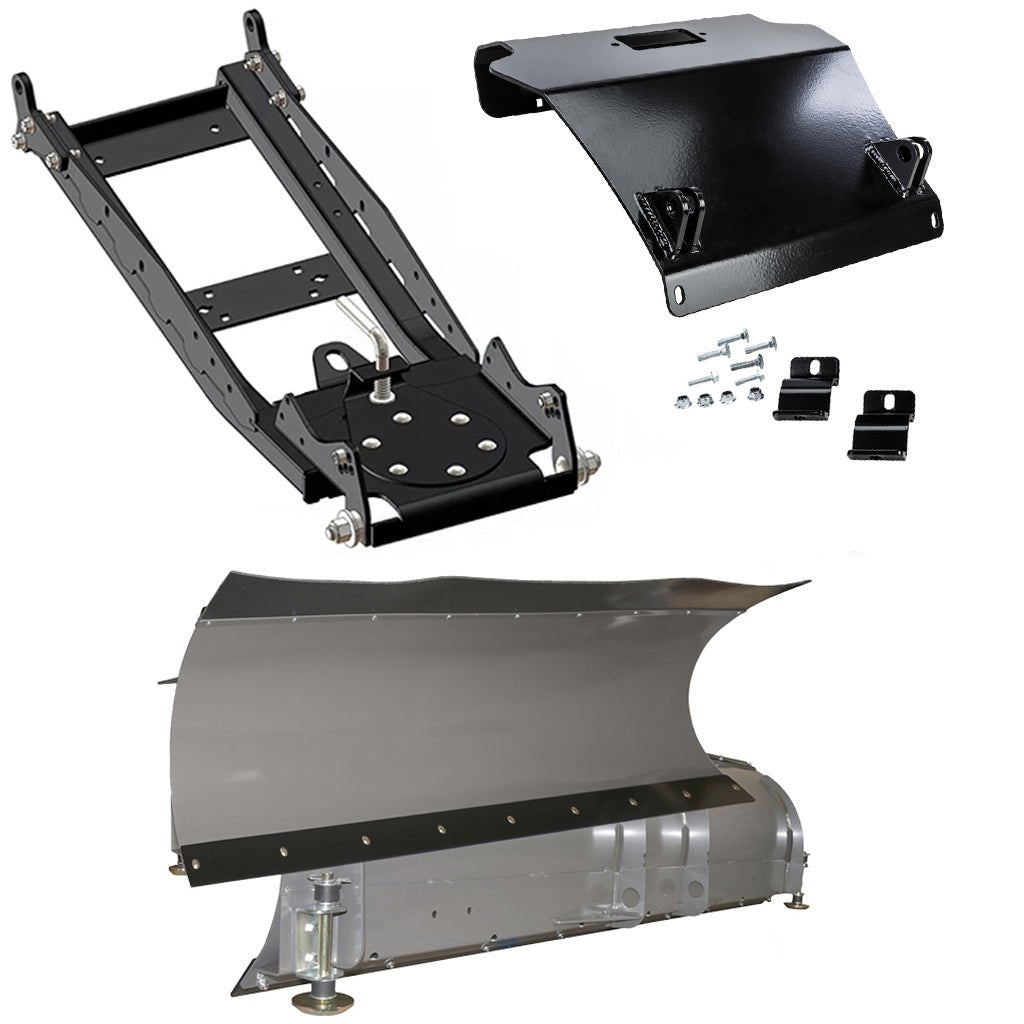

Straight Blade Specifications:
100% MADE IN USA
Pushes snow straight ahead or to the sides up to 25 degrees
Added gussets for the wider width
The 66" & 72" blades only include a 7" high 2-ply top rubber flap
Measures 16 inches Vertical blade face height with an approximate 21 inches height with snow flap
Fully-adjustable blade skids with bolt-on brackets
Heavy duty 3"-diameter grade-50 steel skid plates
Blade Constructed of 11 ga steel
3/16" Grade 50 Ribbing for a strong bolt-up to the Swivel Tube
Unlike all other Plow competitors our Plows are metal bead blasted before they are powder coated Metallic Silver for supreme durability
2-Sided 3/16" x 3.00" Grade 50 Steel Wear Bar
Wear Bar attached with Heavy Duty Grade 8 Bolts
2-Year KFI Warranty

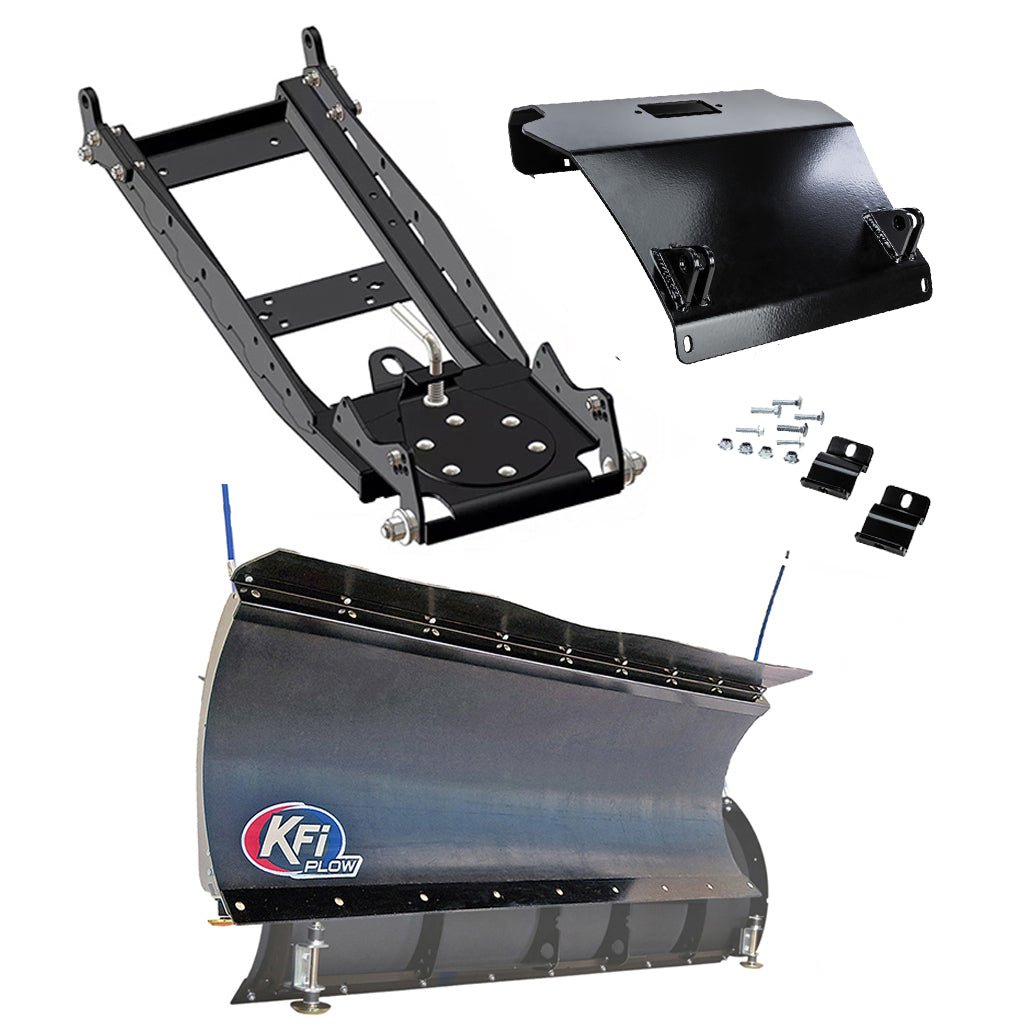

Poly Blade Specifications:
Includes a 7" high 2-ply top rubber flap
100% MADE IN USA
Dual Curvature face for supreme snow moving
Measures 21 inch Vertical blade face height with an approximate 27 inch height with snow flap
Fully-adjustable blade skids with bolt-on brackets
Heavy duty 3"-diameter grade-50 steel skid plates
Flexible Heavy Duty Black Poly face
3/16 inch Grade 50 Steel Rib and Frame construction
Unlike all other Plow competitors our Plows are metal bead blasted before they are Powder Coated Black for supreme durability
2-Sided 3/16" x 3.00" Grade 50 Steel Wear Bar
Wear Bar attached with Heavy Duty Grade 8 Bolts
Complete installation instructions included
Works with KFI UTV Tubes
Includes Plow Markers
2-Year KFI Warranty

KFI Winch Details
Any winch selection will also receive a model-specific winch mount. Click links below to view winch specific details.

U4500 / U4500w  4,500lb Winch, Steel Cable
AS-50x / AS50wx  5,000 lb Winch, Synthetic  Cable
