Home » Baja Designs S2 Pro Infrared LED Light Pod

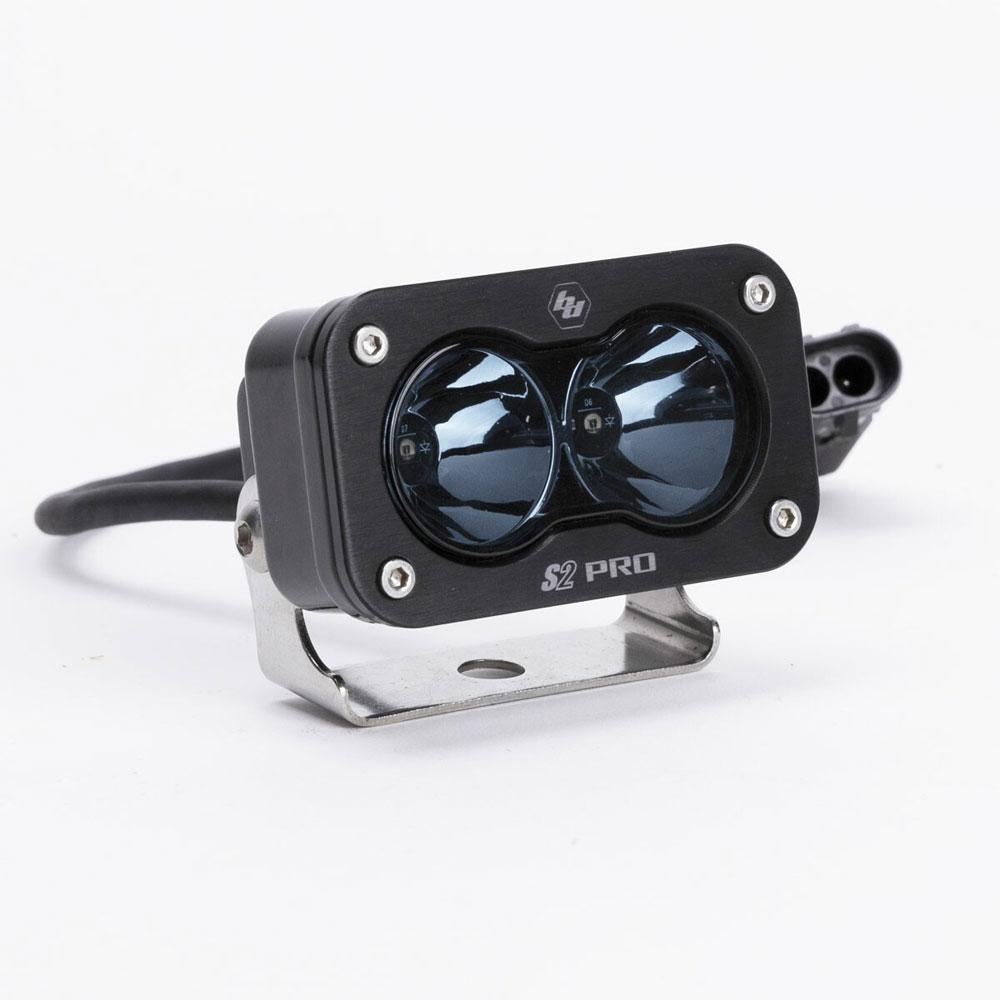

Baja Designs S2 Pro Infrared LED Light Pod

SKU: 487093
No reviews
$ 270.95
Light Pattern
IR Wavelength

Product Details

  • Type Infrared Lighting
  • Vendor Baja Designs
  • SKU 487093
  • UPC 8.19E+11
  • Shipping Weight 0.0 oz
Description Fitment Shipping

Go secretly into the night and see without being seen with Baja Designs S2 Pro IR LED Light. The high output of the 850nm or 940nm infrared LEDs combined with its compact 3 inch x 2 inch size makes it the ultimate covert IR on the market today. NOTE: This light does not come with a wiring harness. The applicable wiring harness for this light is 640117.

Satisfaction Guarantee – 30-Day Money Back Guarantee

Limited Lifetime Warranty – Complete Purchase Protection

uService – Replaceable Lenses And Optics

ClearView – All The Light, Right Where You Need It

MoistureBlock – Waterproof, Rain Proof, Submersible

CopperDrive – Safely Driving LEDs at 100%

INFRARED (IR) LIGHTING

Sometimes, you need to see others without being seen. For those who like to maintain a low profile, Baja Designs has a great selection of infrared LED off-road lights and laser lights designed to fit your specific make and model of vehicle. Our infrared or IR automotive lights are based on the same technology used in night-vision goggles and other nighttime optical devices. Using IR lighting allows drivers to see what’s ahead without shining a beacon from their vehicle, making them less visible to those they don’t want to be seen by. Whether you need an IR hunting light, infrared security lighting, or a general off-roading light, we have the right solution for your needs, all backed by a limited lifetime warranty.

Military Lighting for Vehicles

Infrared lighting is sometimes referred to as military lighting because it’s mainly used in operations where being stealthy is important. The Baja Designs team has adapted several of our industry-leading LED auxiliary lights for use as automotive infrared lights, giving you the upper hand in critical situations. Our Infrared lights are compact and  will help you spot wildlife and intruders covertly. It comes with a mounting bracket to install like a regular aux light. (Please note that this fixture must be used in tandem with night vision goggles.)

Night Vision Task Light

If you need a high-power infrared light, the Baja Designs Infrared Squadron Pro series is up to the task. Driving/combo IR lights are available in 850nm or 940nm outputs and infrared-LED work lights are available in 850nm output. These military-grade lights are the official IR lights of the Polaris MRZR and Dagor vehicles used by the U.S. armed forces and they’re available for civilian use. The IR Follow Me Light is another option for when you need more directional versatility.

No matter what your needs are, Baja Designs has the right driving lights for every situation. Our off-road infrared lighting solutions are designed to be easy to install and to deliver the performance you want at a price you can appreciate. Browse our selection today and order your favorite vehicle-mounted IR lights.

Baja Designs 487073 Installation Sheet

Baja Designs 487093 Installation Sheet

SKU: 487073

Specifications

Housing Material Aircraft Grade Aluminum with Mil-Spec Hard Anodize
Lens Color Infrared
Lens Material Hardcoated Polycarbonate
Light Quantity 1
Lighting Quantity 2
Lighting Technology Osram 850nm SFH4515AS LED
Lighting Type Forward Projecting
Mounting Hardware Included Yes
Mounting Hardware Material Stainless Steel
Overvoltage Protection Built-In
Product Type S2 Pro Infrared LED Light Pod
Voltage 13.800
Wattage (W) 23.460
Wiring Harness Included No
Amperage Rating (A) 1.700
Average Rated Life (hr.) 49,930
Beam Pattern Driving/Combo
Bezel Material Billet Machined Aluminum
Brightness (Lumens) 2245
Description Driving/Combo; IR 850nm
Housing Color Black

Standards & Compliance

Standards/Compliance (Durability) Exceeds MIL-STD810G (Mil-Spec Testing)
Standards/Compliance (Impact Resistance) IK10 Compliant (Mechanical Impact Testing)
Standards/Compliance (Water Resistance) IP69K (Waterproof up to 9ft & Pressure Washable)

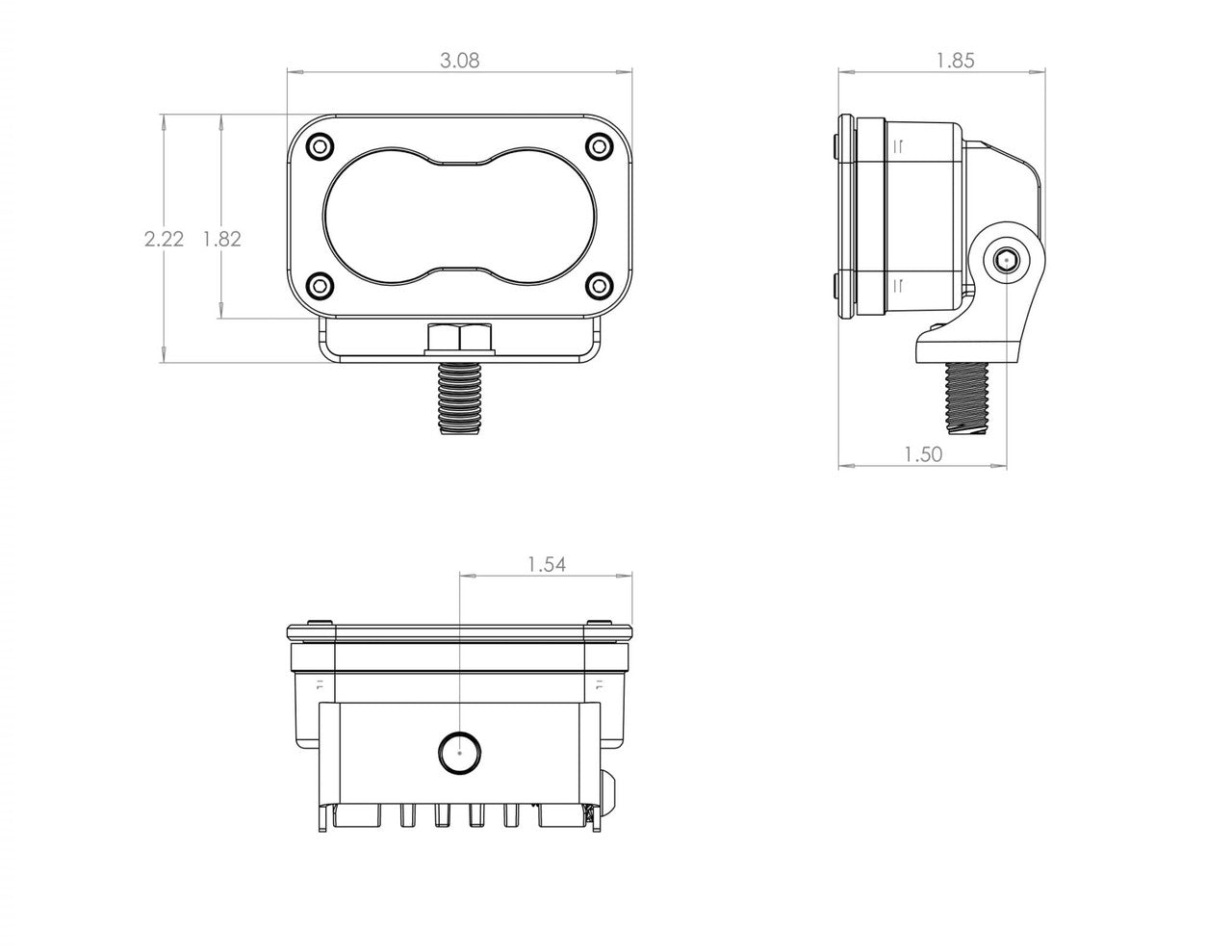

Dimensions

Depth (in.) 1.680
Height (in.) 1.760
Length (in.) 2.930
Weight (lbs.)

0.500

LIGHTING ZONES/ LENS PATTERNS/ COLORS

  • Driving Combo

    Maximum trail coverage in a single light. The Driving/Combo pattern is equipped with both Driving (42-degree) and spot (9-degree) optics to provide you with a smooth blend of light for both near field applications and distance.

  • Spot

    A longer and narrower 9-degree beam focus for illumination further down the trail or road. The Spot pattern is designed to be used in conjunction with additional Wide Driving and/or Driving/Combo beam lights.

  • Wide Cornering

    The Wide Driving pattern offers a 42-degree flattened horizontal beam for the ultimate in comfort lighting. This pattern is specifically for cornering, dust, snow, rain, and/or fog conditions.

  • Work/Scene

    Excellent work light or “scene light” with an extremely smooth 120° circle that projects about 40ft. This pattern is not suitable for driving.

  • Trail

    Designed to aid in both vertical and horizontal light spread. Provides more near and mid-field visibility in tight slower technical terrain. (S1 only)

  • Clear

    The original performance lens. Our clear lens combined with our 5000k LEDs provides light most similar to daylight, reducing driver fatigue and increasing terrain recognition.

  • Baja Amber

    This performance-driven lens is designed for off-road driving in challenging conditions like dust, rain, snow, or fog. The Baja Amber lens minimizes glare, enhancing visibility and significantly improving your driving experience.

  • Factory Amber

    This replacement lens option is crafted to seamlessly match the OEM running lights found on vehicles today. Factory Amber provides a color temperature that is best utilized in low-visibility conditions to increase depth perception while minimizing glare.

ZONES

  • Dust/Fog

    Illuminates the area directly in front of the vehicle, for use during rainy, snowy, or dusty conditions.

    Automotive, Motorcycle, UTV

  • Cornering

    Provides cornering and peripheral light, which is necessary to drive comfortably at speed.

    Automotive, Motorcycle, UTV

  • Driving Combo

    Your primary driving light and most important zone to start with when building a balanced lighting package.

    Automotive, Motorcycle, UTV

  • Spot

    This zone is your first level of long-distance lighting. Lights intended for this zone will give you the distance needed to travel at speeds and see safely down the road or trail.

    Automotive, Motorcycle, UTV

  • Racer Edition Spot

    This zone is implemented when approaching triple-digit speeds, or in instances when distance penetration becomes necessary.

    Automotive, Motorcycle, UTV

  • Rock Light

    This zone illuminates the wheel wells, undercarriage, or any other part of the vehicle that can benefit from great visibility while moving through tight spaces and jagged terrain.

    Automotive, UTV

  • Cargo

    This zone is important for drivers that need quick access to tools and cargo, in and immediately around the vehicle.

    Automotive, UTV

  • Backup/Reverse

    This zone is crucial to keeping the backside of your vehicle safe. Whether reversing on the trail or leading a pack through the dust, you will want the correct lighting solution.

    Automotive, UTV

  • Laser Series

    This zone is one of the last additions to your lighting package. When you have optimized your entire package and still need that extra punch in the distance, make sure to check out the ultimate distance lighting available today.

    Automotive, UTV
