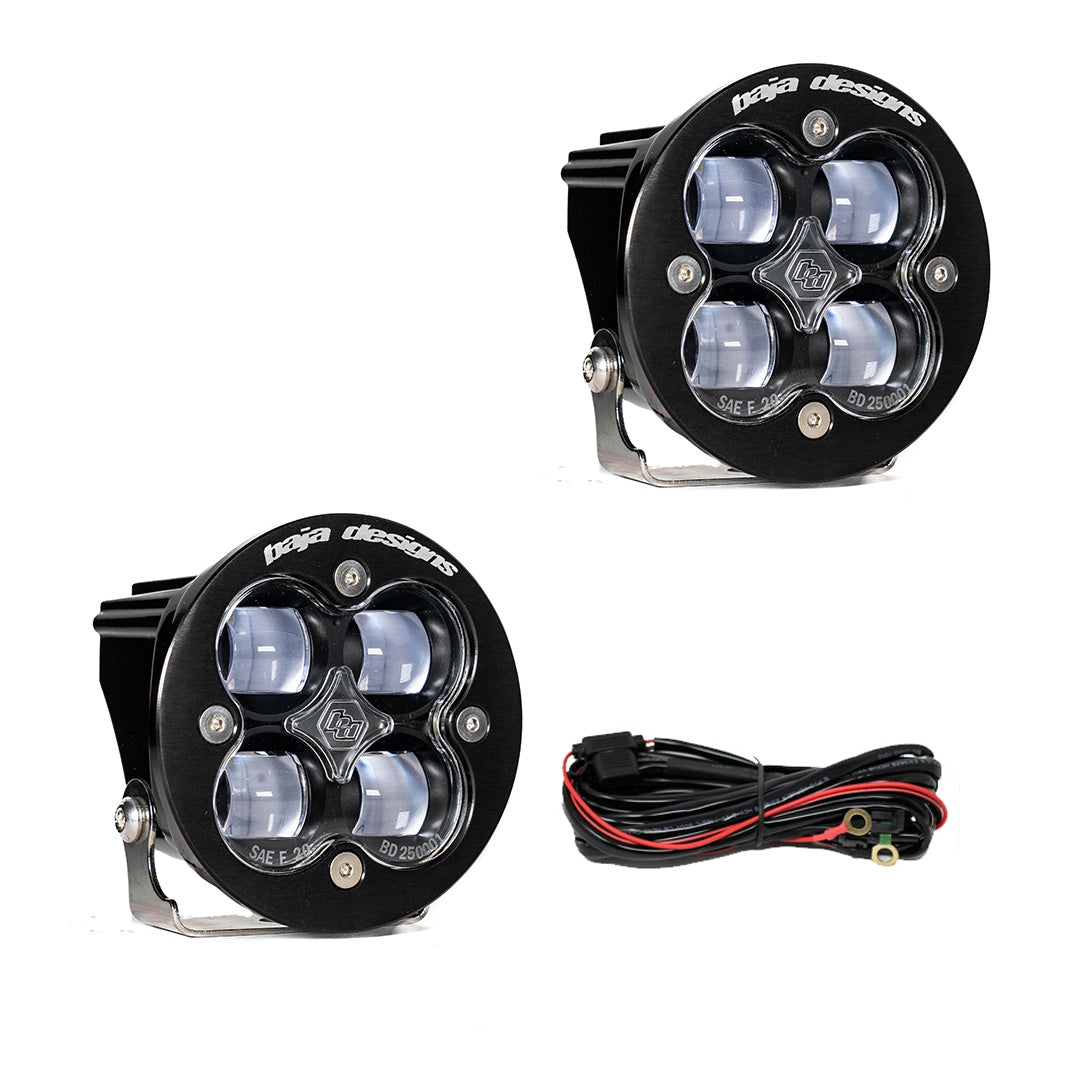

Baja Designs Squadron-R SAE LED Auxiliary Light Pod Pair

SKU: 247802

No reviews

$ 349.95

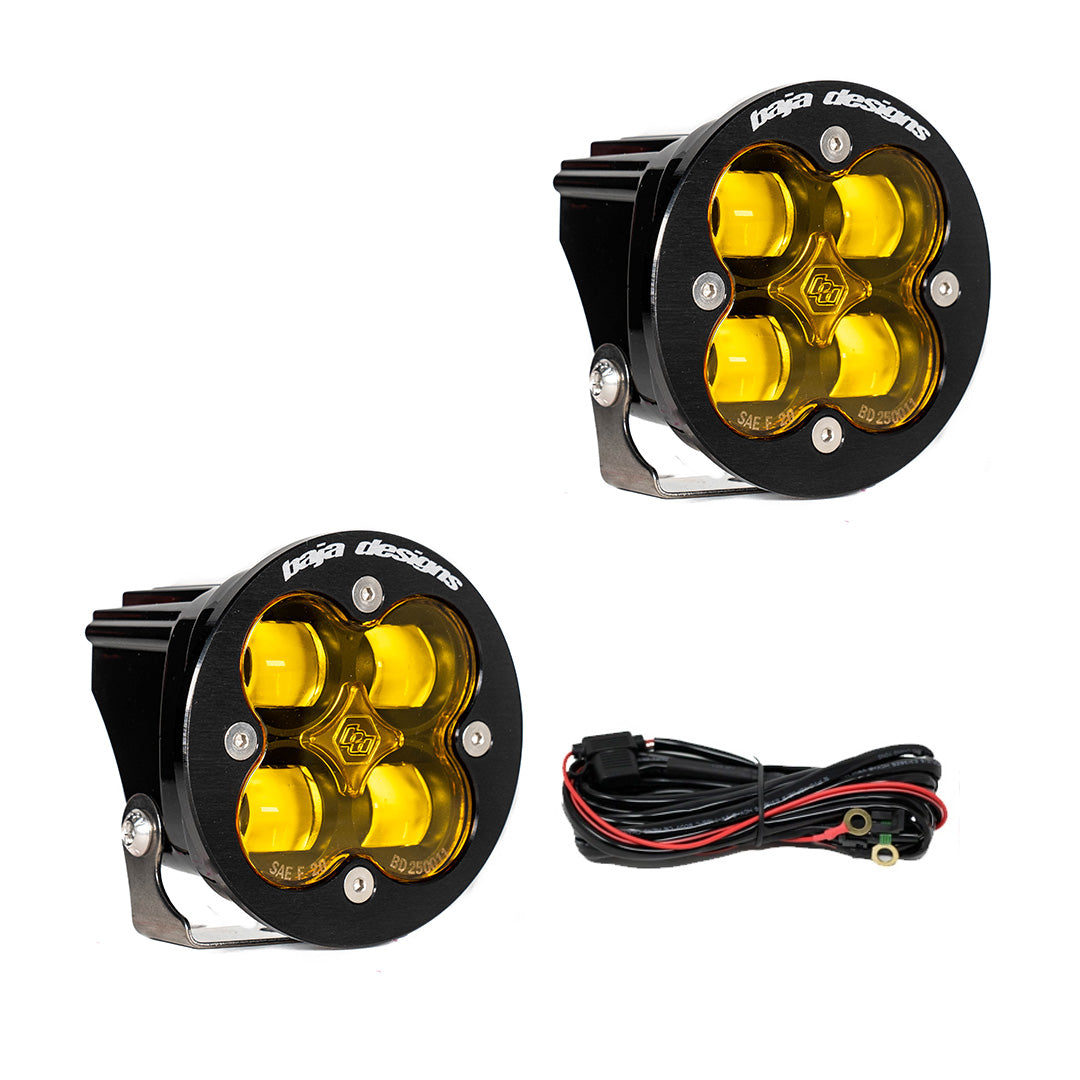

Color Clear Baja Amber

SPECIAL ORDER

Please allow 1 - 3 weeks for this item to fulfill.

Product Details

Type Fog Lights
Vendor Baja Designs
SKU 247802
UPC 8.10E+11
Shipping Weight 0.0 lb

Baja Designs next generation Squadron® SAE is the perfect road-legal auxiliary fog light on the market today. Engineered with all-new aspheric projector optics and with our advanced LED technology provides a performance increase in luminous flux of 56% over our previous generation SAE model. The all-new Squadron® SAE delivers 2,420 lumens per light with output reaching up to 15,800 candela at just 29 watts. Keeping you safe on the road or trails, the Squadron® SAE will illuminate Zone 1 with a controlled, sharp cutoff from the combination of the new LED technology and highly efficient aspheric projector optics. Designed to meet the current SAE J583 fog lamp requirements, the Squadron® SAE is fully compliant with on-road regulations. This innovative approach allows for a highly controlled light pattern with a sharp cutoff, making them an ideal choice for driving through dust, fog, and inclement weather. Backed by our limited lifetime warranty and 30-day satisfaction guarantee, giving you the ultimate in-purchase protection. USPTO Reg No. 5,766,659

NOTE: If planning to mount light upside down or sideways, please call in to have the optics adjusted accordingly.

Satisfaction Guarantee – 30-Day Money Back Guarantee

Limited Lifetime Warranty – Complete Purchase Protection

ClearView – All The Light, Right Where You Need It

MoistureBlock – Waterproof, Rain Proof, Submersible

CopperDrive – Only LED Driven At 100 Percent

5000K Daylight – Less Driver Fatigue, Natural Color

NOTE: uService® is NOT a feature of SAE products. If tampered, it will void the warranty. Our Limited Lifetime Warranty is valid only if sent back for repairs.

Baja Designs 247802 Installation Sheet

Baja Designs 247816 Installation Sheet

Dimensions

Depth (in.)	2.77
Height (in.)	3.07
Length (in.)	3.07
Weight (lbs.)	0.75

Specifications

Amperage Rating (A)	2.1
Average Rated Life (hr.)	49930
Beam Pattern	SAE Fog
Bezel Material	Powder Coated Cast Aluminum
Brightness (Lumens)	2420
Description	Round; SAE Fog; Clear; Pair
Housing Color	Black
Housing Material	Hard Anodized and Powder Coated Cast Aluminum
Lens Color	Clear
Lens Material	Hardcoated Polycarbonate
Light Quantity	2
Lighting Modes	Beam
Lighting Quantity	4
Lighting Technology	Forward Projecting
Lighting Type	Cree LED
Mounting Hardware Included	Yes
Mounting Hardware Material	Stainless Steel
Overvoltage Protection	Built-In
Product Type	Squadron-R SAE LED Light Pod Pair w/ Wiring Harness
Wattage (W)	29
Wiring Harness Included	Yes

Standards & Compliance

DOT Approved	No
Standards/Compliance (Durability)	Exceeds MIL-STD810G (Mil-Spec Testing)
Standards/Compliance (Impact Resistance)	IP69K (Waterproof up to 9ft & Pressure Washable)
Standards/Compliance (SAE)	SAE Standard J583
Standards/Compliance (Water Resistance)	IK10 Compliant (Mechanical Impact Testing)
Street Legal	Yes
