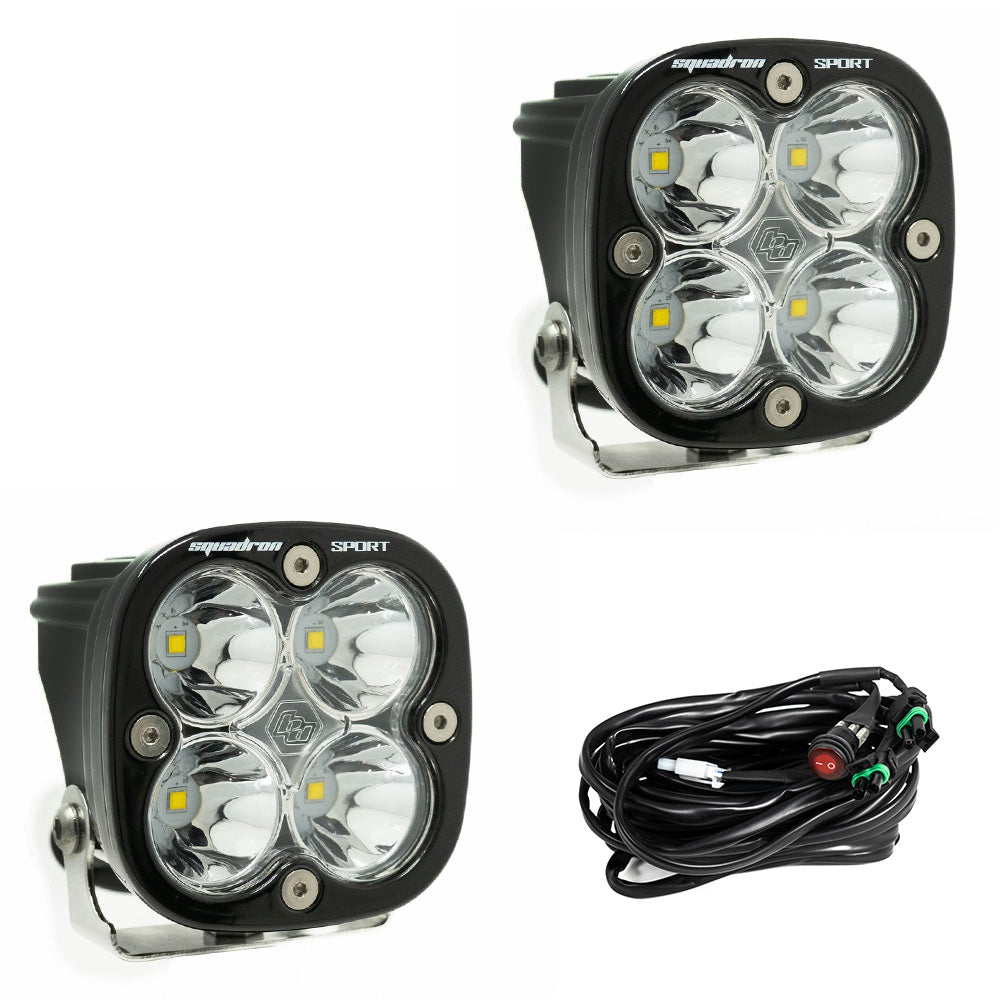

Baja Designs Squadron Sport Black LED Auxiliary Light Pod Pair

SKU: 557801

No reviews

$ 249.95

Light Pattern Spot Driving/Combo Wide Cornering Work/Scene

Color Clear Baja Amber

SPECIAL ORDER

Please allow 1 - 3 weeks for this item to fulfill.

Product Details

Type LED Light Pods
Vendor Baja Designs
SKU 557801
UPC 8.54E+11
Shipping Weight 0.0 lb

Upgrade your light package with the Squadron Sport LED light pair from Baja Designs. Don’t let the compact size of these 3” light pods fool you as they will fit almost anywhere you need auxiliary lighting on your truck, Jeep, SUV, UTV and any other vehicle that needs lights. While compact in size the Squadron Sport is equipped with a sleek black gloss aluminum housing that outshines the competition through both appearance and performance using next generation LEDs pushing out 3,162 lumens at 30 watts. Our 30-Day Satisfaction Guarantee and Limited Lifetime Warranty is included for the ultimate in purchase protection. USPTO Reg No. 5,766,659

ELS™ Scores:
Squadron Sport Spot Clear: ELS 112⁰/ 5.3/ 229'/ 1973
Squadron Sport Driving Combo Clear: ELS 112⁰/ 7.1 / 183'/ 2441
Squadron Sport Wide Cornering Clear: ELS 124⁰/ 6.7/ 114'/ 2506

Comes with:

(2x) Squadron Sport Light Pods
(1x) Wiring Harness 640117
All Necessary Mounting Hardware

Satisfaction Guarantee – 30-Day Money Back Guarantee

Limited Lifetime Warranty – Complete Purchase Protection

uService – Replaceable Lenses And Optics

ClearView – All The Light, Right Where You Need It

MoistureBlock – Waterproof, Rain Proof, Submersible

CopperDrive – Only LED Driven At 100 Percent

5000K Daylight – Less Driver Fatigue, Natural Color

Baja Designs 557801 Installation Sheet

Baja Designs 557803 Installation Sheet

Baja Designs 557805 Installation Sheet

Baja Designs 557806 Installation Sheet

Baja Designs 557811 Installation Sheet

Baja Designs 557813 Installation Sheet

Baja Designs 557815 Installation Sheet

Baja Designs 557816 Installation Sheet

Lens Color	Clear
Lens Material	Hardcoated Polycarbonate
Light Quantity	2
Lighting Modes	Beam
Lighting Quantity	4
Lighting Technology	LED
Lighting Type	Forward Projecting
Mounting Hardware Included	Yes
Mounting Hardware Material	Stainless Steel
Overvoltage Protection	Built-In
Product Type	Squadron Sport LED Light Pod Pair w/ Wiring Harness
Wattage (W)	30.360
Wiring Harness Included	Yes
Amperage Rating (A)	2.200
Average Rated Life (hr.)	49,930
Beam Pattern	Spot
Bezel Material	Powder Coated Cast Aluminum
Brightness (Lumens)	3162
Description	Spot; Clear; Pair
Housing Color	Black
Housing Material	Powder Coated Cast Aluminum

Standards & Compliance

Standards/Compliance (Durability)	Exceeds MIL-STD810G (Mil-Spec Testing)
Standards/Compliance (Impact Resistance)	IK10 Compliant (Mechanical Impact Testing)
Standards/Compliance (Water Resistance)	IP69K (Waterproof up to 9ft & Pressure Washable)

Dimensions

Depth (in.)	2.770
Height (in.)	3.070
Length (in.)	3.070
Weight (lbs.)	0.750

We appreciate your business and are committed to providing you with the exceptional service and timely delivery we are known for. Please review the shipping information below for your order.

*FREE U.S. Shipping:

Orders with a subotal of $99.00 or above qualify for Free Standard Ground Shipping to the Contiguous 48 United States. Hawaii and Alaska do not qualify and will be reflected with rates at checkout.

Order Processing Time:

Orders are usually processed within 24-48 hours after the order has been placed.
Custom or special order items may take longer to process, typically 3-5 business days.

Shipping Methods:

Standard Shipping (3-7 business days)
Expedited Shipping (2-3 business days)
Express Shipping (1-2 business days)

Packaging:

Rest assured that all items will be securely and safely packaged to prevent any damage during transit. Fragile or high-value parts will be packaged with additional protective materials, such as bubble wrap or foam padding.

Shipping Rates:

Shipping rates vary based on the size, weight, and destination of the package. You can view the estimated shipping costs for your order during the checkout process before placing your order.

Order Tracking:

Once your order has been shipped, you will receive an email with the tracking number and carrier information. You can also track your order status by logging into your account.

International Shipping:

We ship worldwide! Please note that international shipping rates and delivery times may vary based on destination. Customers are responsible for any customs fees, import taxes, or additional charges that may apply.

LIGHTING ZONES/ LENS PATTERNS/ COLORS

Driving Combo
Maximum trail coverage in a single light. The Driving/Combo pattern is equipped with both Driving (42-degree) and spot (9-degree) optics to provide you with a smooth blend of light for both near field applications and distance.
Spot
A longer and narrower 9-degree beam focus for illumination further down the trail or road. The Spot pattern is designed to be used in conjunction with additional Wide Driving and/or Driving/Combo beam lights.
Wide Cornering
The Wide Driving pattern offers a 42-degree flattened horizontal beam for the ultimate in comfort lighting. This pattern is specifically for cornering, dust, snow, rain, and/or fog conditions.
Work/Scene
Excellent work light or “scene light” with an extremely smooth 120° circle that projects about 40ft. This pattern is not suitable for driving.
Trail
Designed to aid in both vertical and horizontal light spread. Provides more near and mid-field visibility in tight slower technical terrain. (S1 only)

Clear
The original performance lens. Our clear lens combined with our 5000k LEDs provides light most similar to daylight, reducing driver fatigue and increasing terrain recognition.
Baja Amber
This performance-driven lens is designed for off-road driving in challenging conditions like dust, rain, snow, or fog. The Baja Amber lens minimizes glare, enhancing visibility and significantly improving your driving experience.
Factory Amber
This replacement lens option is crafted to seamlessly match the OEM running lights found on vehicles today. Factory Amber provides a color temperature that is best utilized in low-visibility conditions to increase depth perception while minimizing glare.

ZONES

Dust/Fog
Illuminates the area directly in front of the vehicle, for use during rainy, snowy, or dusty conditions.
Automotive, Motorcycle, UTV
Cornering
Provides cornering and peripheral light, which is necessary to drive comfortably at speed.
Automotive, Motorcycle, UTV
Driving Combo
Your primary driving light and most important zone to start with when building a balanced lighting package.
Automotive, Motorcycle, UTV
Spot
This zone is your first level of long-distance lighting. Lights intended for this zone will give you the distance needed to travel at speeds and see safely down the road or trail.
Automotive, Motorcycle, UTV
Racer Edition Spot
This zone is implemented when approaching triple-digit speeds, or in instances when distance penetration becomes necessary.
Automotive, Motorcycle, UTV
Rock Light
This zone illuminates the wheel wells, undercarriage, or any other part of the vehicle that can benefit from great visibility while moving through tight spaces and jagged terrain.
Automotive, UTV
Cargo
This zone is important for drivers that need quick access to tools and cargo, in and immediately around the vehicle.
Automotive, UTV
Backup/Reverse
This zone is crucial to keeping the backside of your vehicle safe. Whether reversing on the trail or leading a pack through the dust, you will want the correct lighting solution.
Automotive, UTV
Laser Series
This zone is one of the last additions to your lighting package. When you have optimized your entire package and still need that extra punch in the distance, make sure to check out the ultimate distance lighting available today.
Automotive, UTV
