Voyager Pro4 MOTO Kit
Product Details
- Type GPS Systems
- Vendor Trail Tech
- SKU 925-MOTO
- Shipping Weight 1.5 lb
Add dirt bikes, dual-sports, and adventure motorcycles to the group map with the Voyager Pro4 MOTO Kit: Buddy Tracking, GPS mapping, tach and temperature data, and compatibility with Polaris RIDE COMMAND Group Ride vehicles.

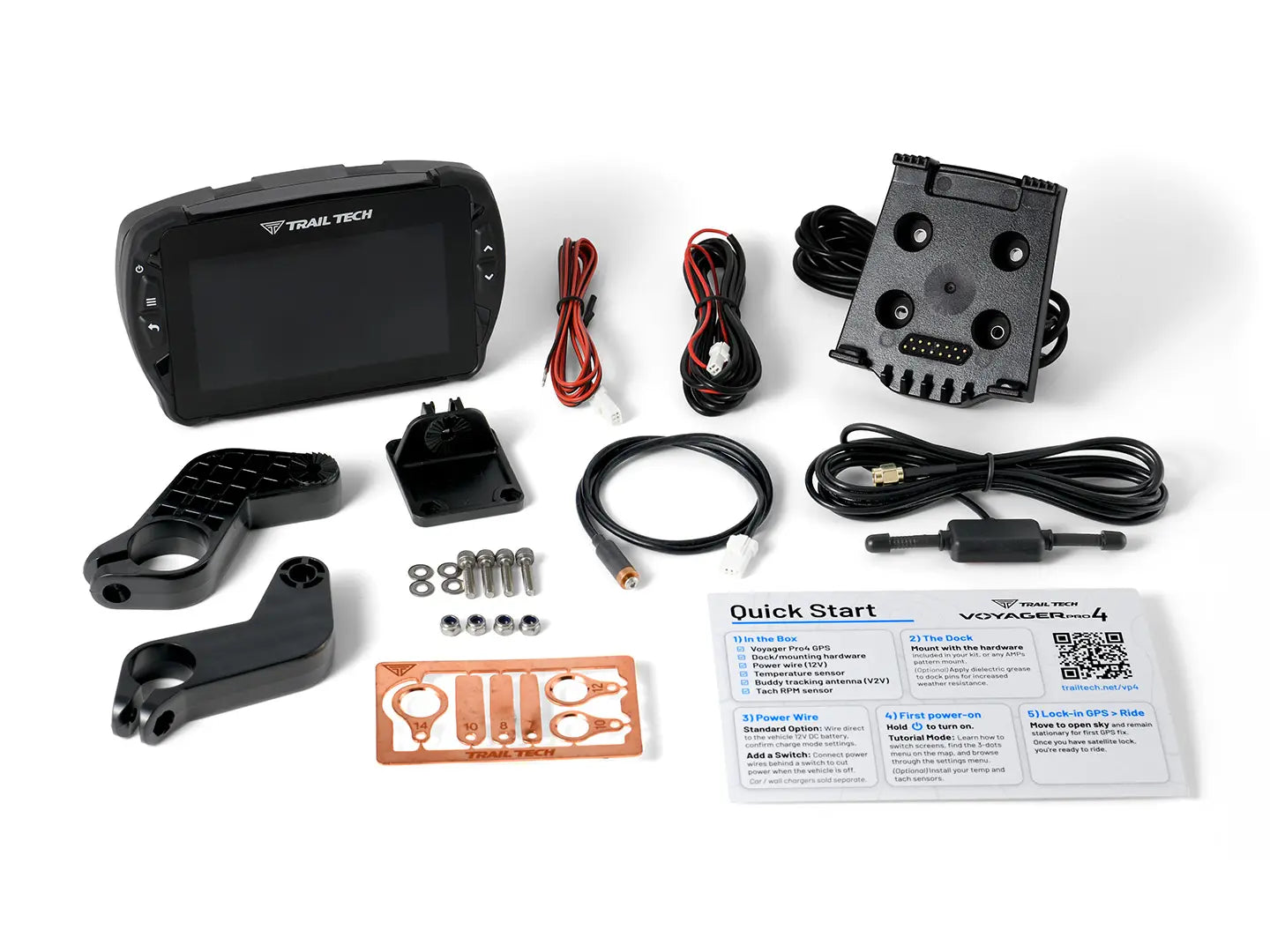

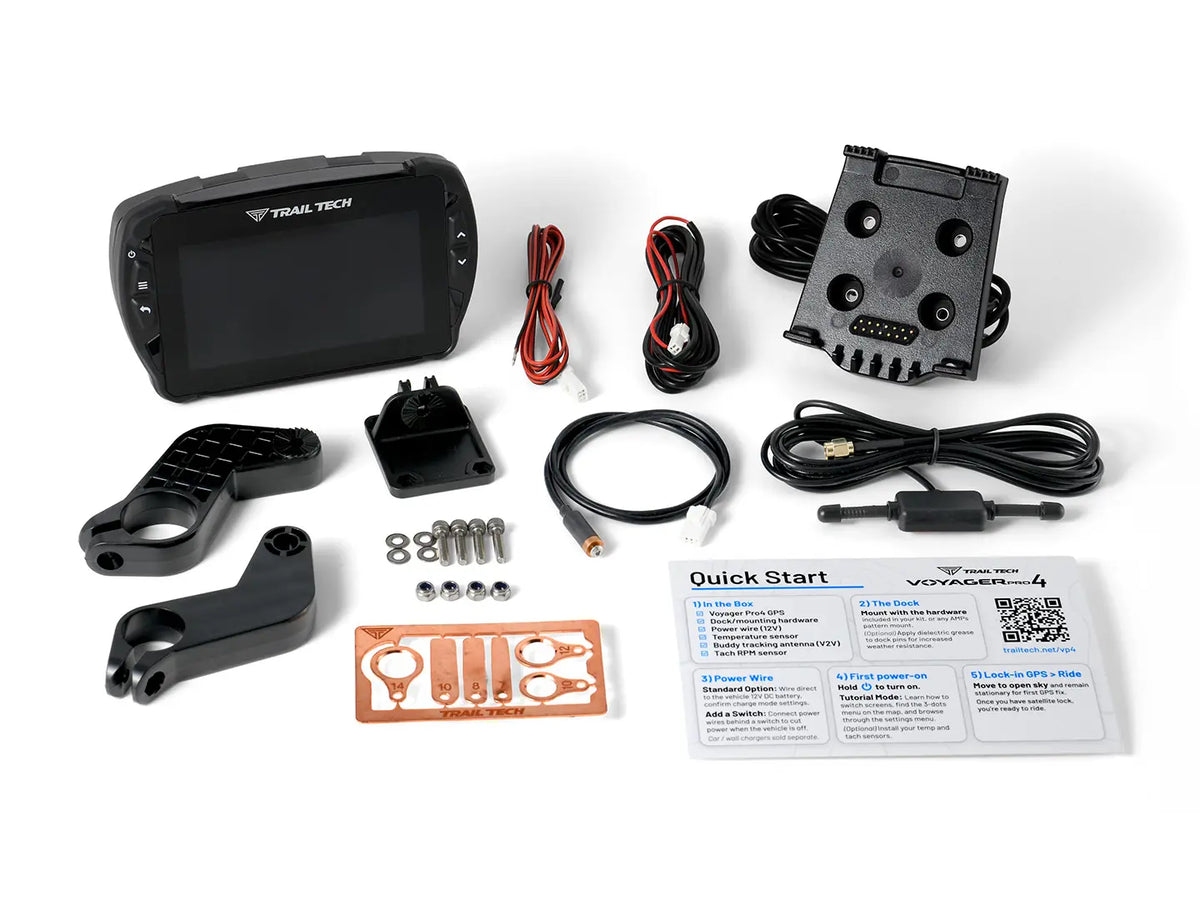

The Voyager Pro4 MOTO Kit includes the VP4 head unit, plastic quick-release dock, motorcycle mounting hardware, Buddy Tracking antenna, 48 in power wire, 70 in tach sensor, and Trail Tech’s universal temperature sensor for a compact, motorcycle-ready install.
In mixed-machine rides, the MOTO Kit gives bikes a way onto the group map. Buddy Tracking uses radio signals and GPS to create a private rider-to-rider location network for up to 20 riders without cell service. The included external V2V antenna enables the feature, and Buddy Tracking groups are compatible with Polaris RIDE COMMAND Group Ride vehicles.

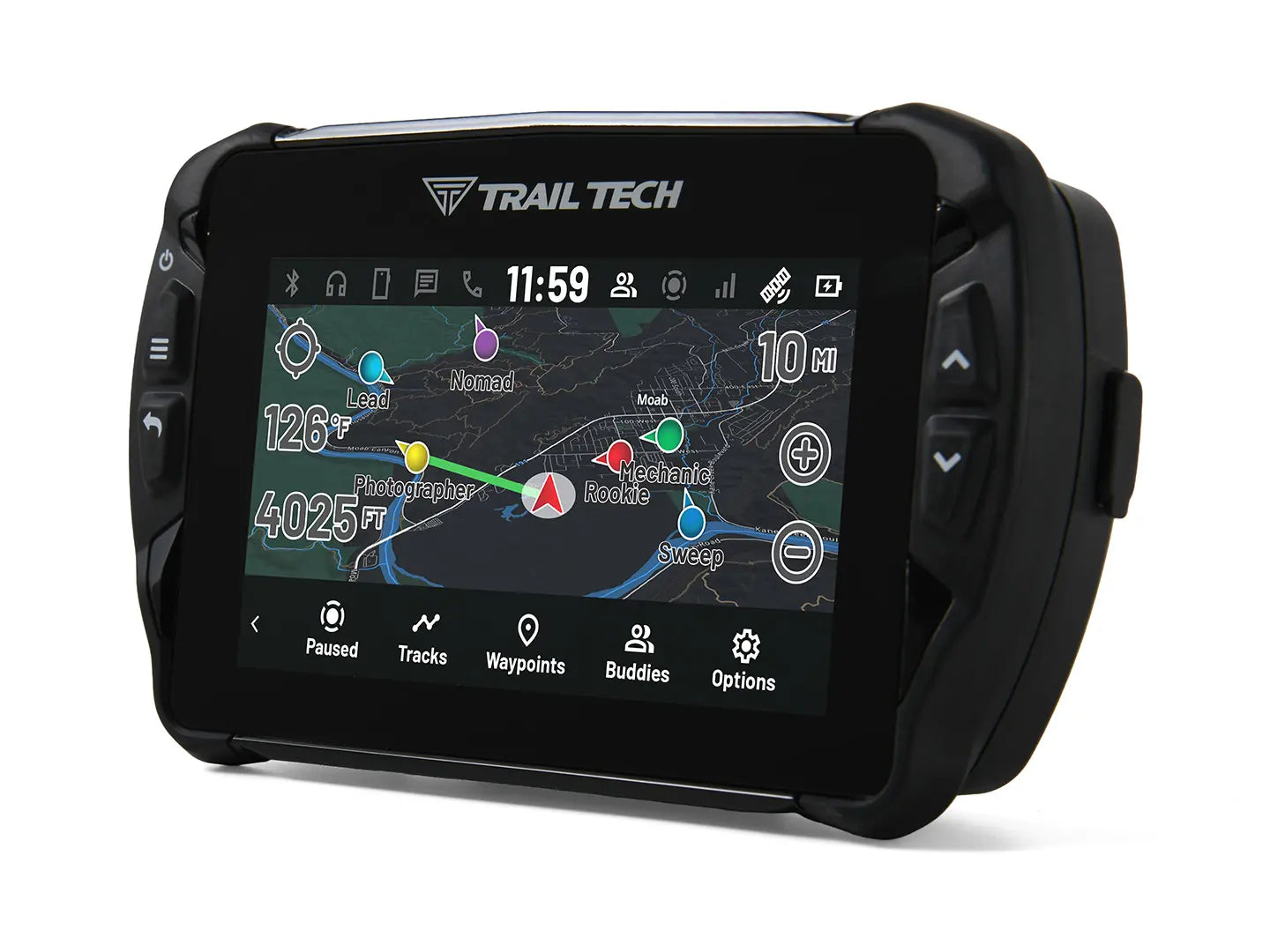

The 4.3 in display combines GPS mapping, vehicle integration, ride logging, and on-dash ride data in one dedicated off-road screen. VP4 supports GPX, GeoPDF, and Raster MBTiles, stores maps and routes on 32 GB of internal memory plus microSD up to 64 GB, and pairs over Bluetooth 5.1 to a compatible phone and headset for music controls, calls, and text alerts. The MOTO Kit keeps the install compact while bringing tach and temperature data into the same rugged display.
Voyager Pro4: bring more of the group onto the map

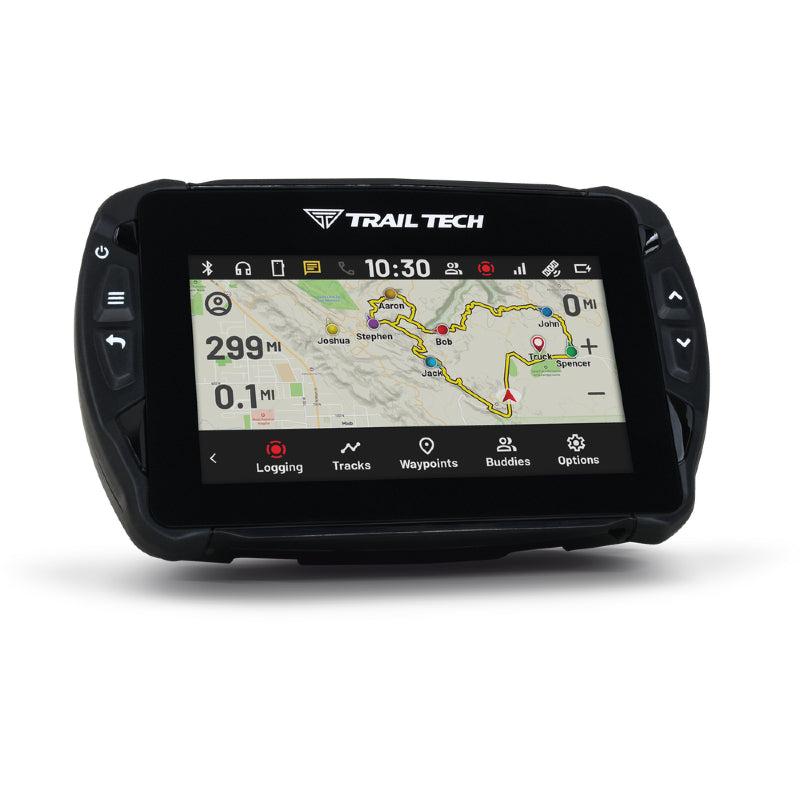

Voyager Pro4 is Trail Tech's dedicated off-road GPS display for side-by-sides, snowmobiles, dirt bikes, dual-sports, and adventure motorcycles. It puts Buddy Tracking, mapping, ride data, Bluetooth, and machine-specific install hardware into three kits for UTV, SNOW, and MOTO riders.

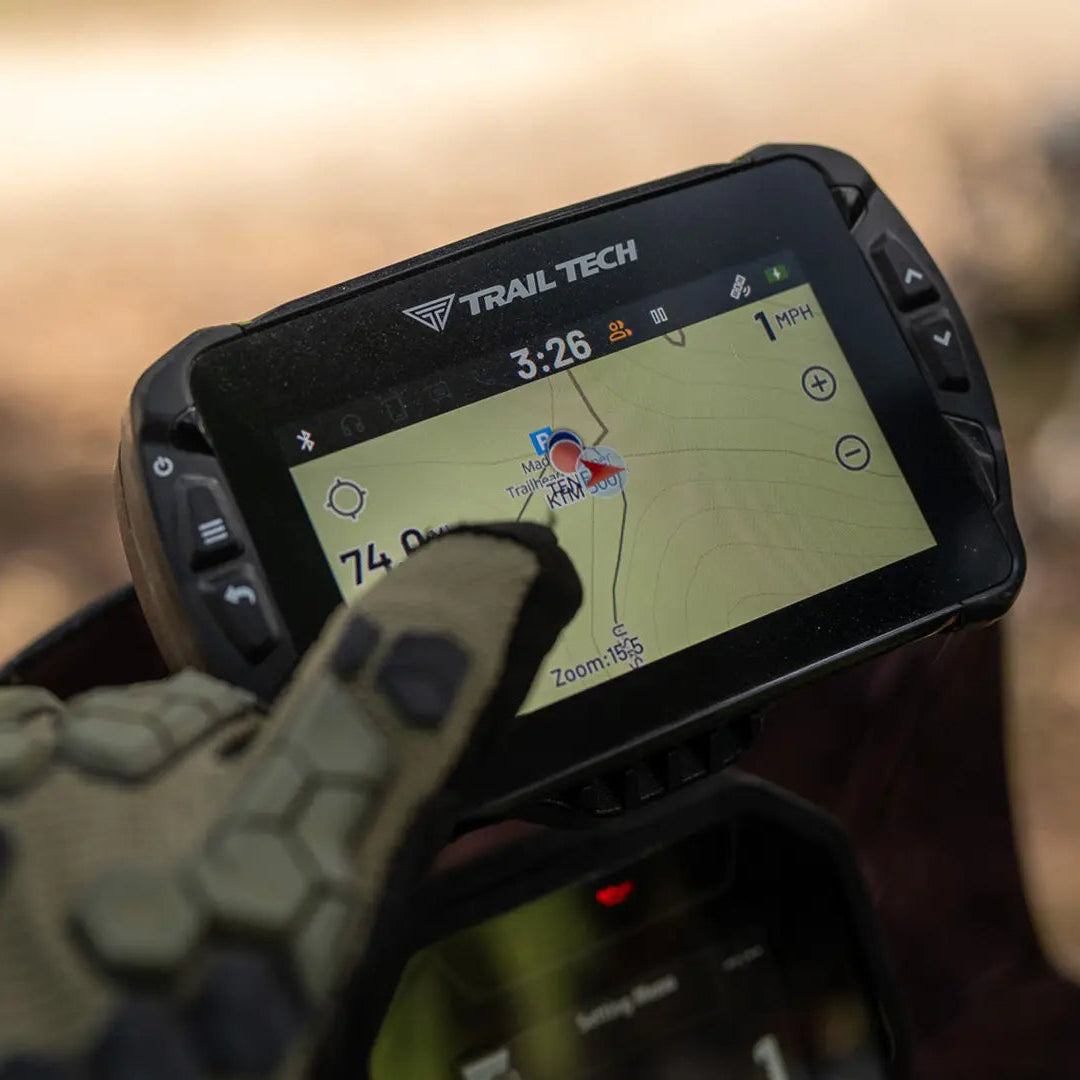

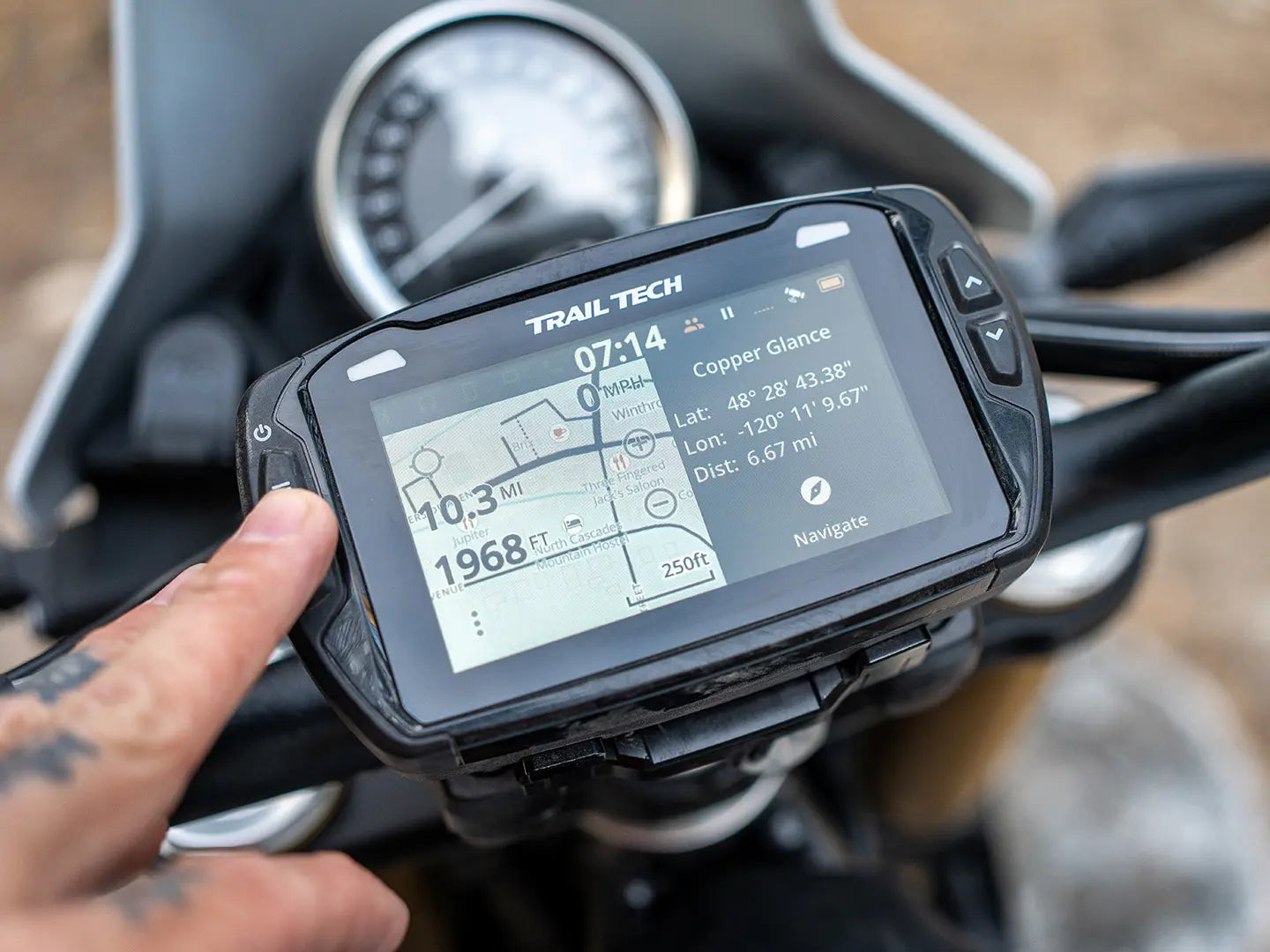

Built for motorcycle cockpits
The VP4 MOTO Kit packages Voyager Pro4 for dirt bikes, dual-sport motorcycles, and adventure bikes with compact mounting hardware, a quick-release dock, a Buddy Tracking antenna, and the sensor inputs needed to bring tach and temperature data onto the dash.
Put scout bikes on the group map
Buddy Tracking uses radio signals and GPS to create a private rider-to-rider location network. Up to 20 riders can appear on the map without cell service, and the included external V2V antenna enables the feature. In mixed-machine groups, the MOTO Kit helps dirt bikes, dual-sports, and adventure motorcycles stay visible alongside compatible Polaris RIDE COMMAND Group Ride vehicles.

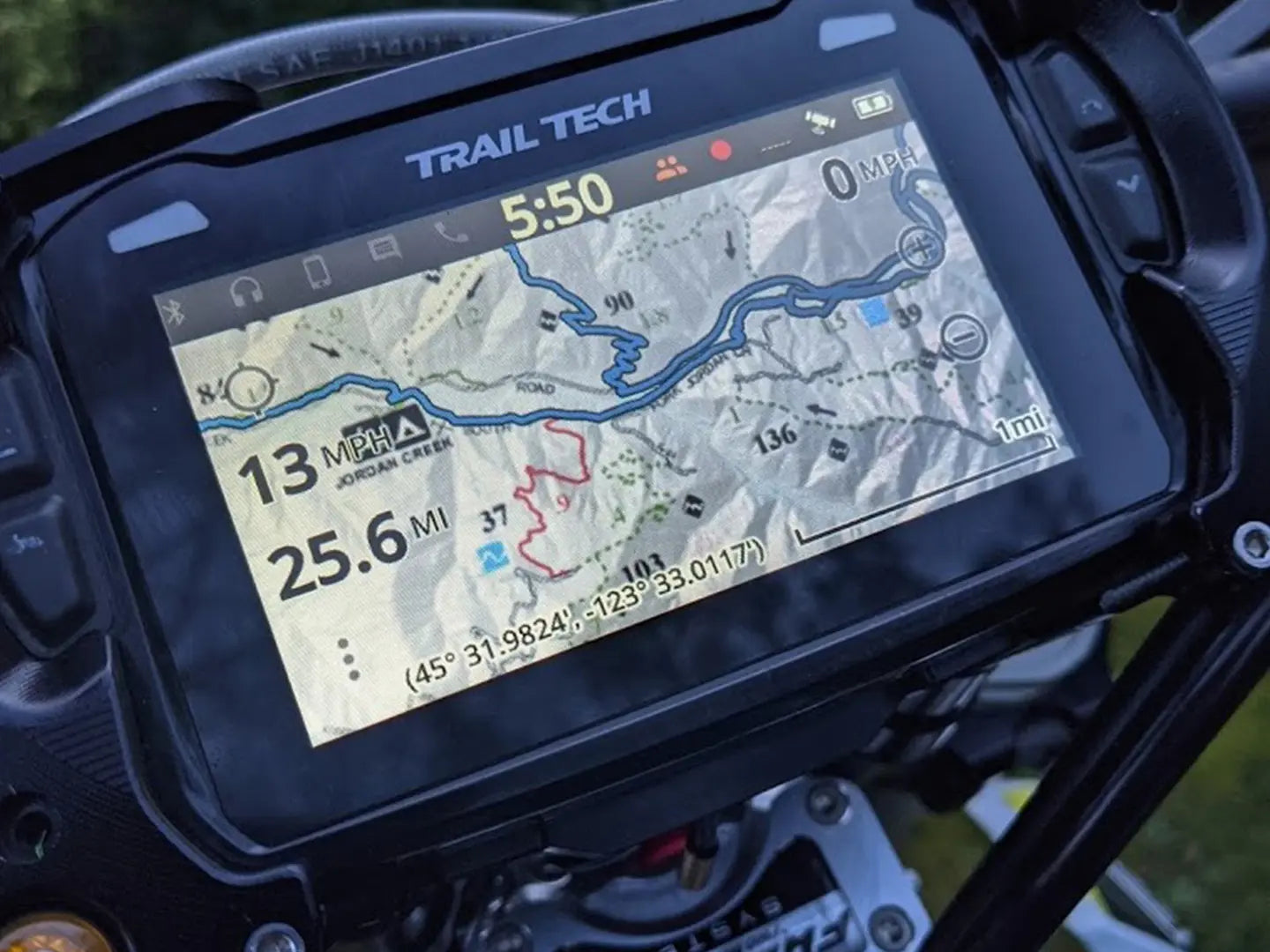

One screen for navigation and ride data
Voyager Pro4 combines GPS mapping, ride logging, and on-dash ride data in one dedicated off-road display. The 4.3 in, 1000 nit screen is backed by microSD support up to 64 GB and support for GPX, GeoPDF, and Raster MBTiles.
Buddy tools for real rides
VP4 supports Buddy Tails for movement awareness, Navigate to Buddy for a direct line to another rider, and Buddy Beacon for regroup alerts. Buddy Tracking groups are compatible with Polaris RIDE COMMAND Group Ride vehicles.
Pair to your phone and headset
VP4 can pair to a compatible phone and headset over Bluetooth. Riders can access music controls, calls, and text alerts from the dash without giving up a dedicated off-road display.
Flexible temperature sensing in one box

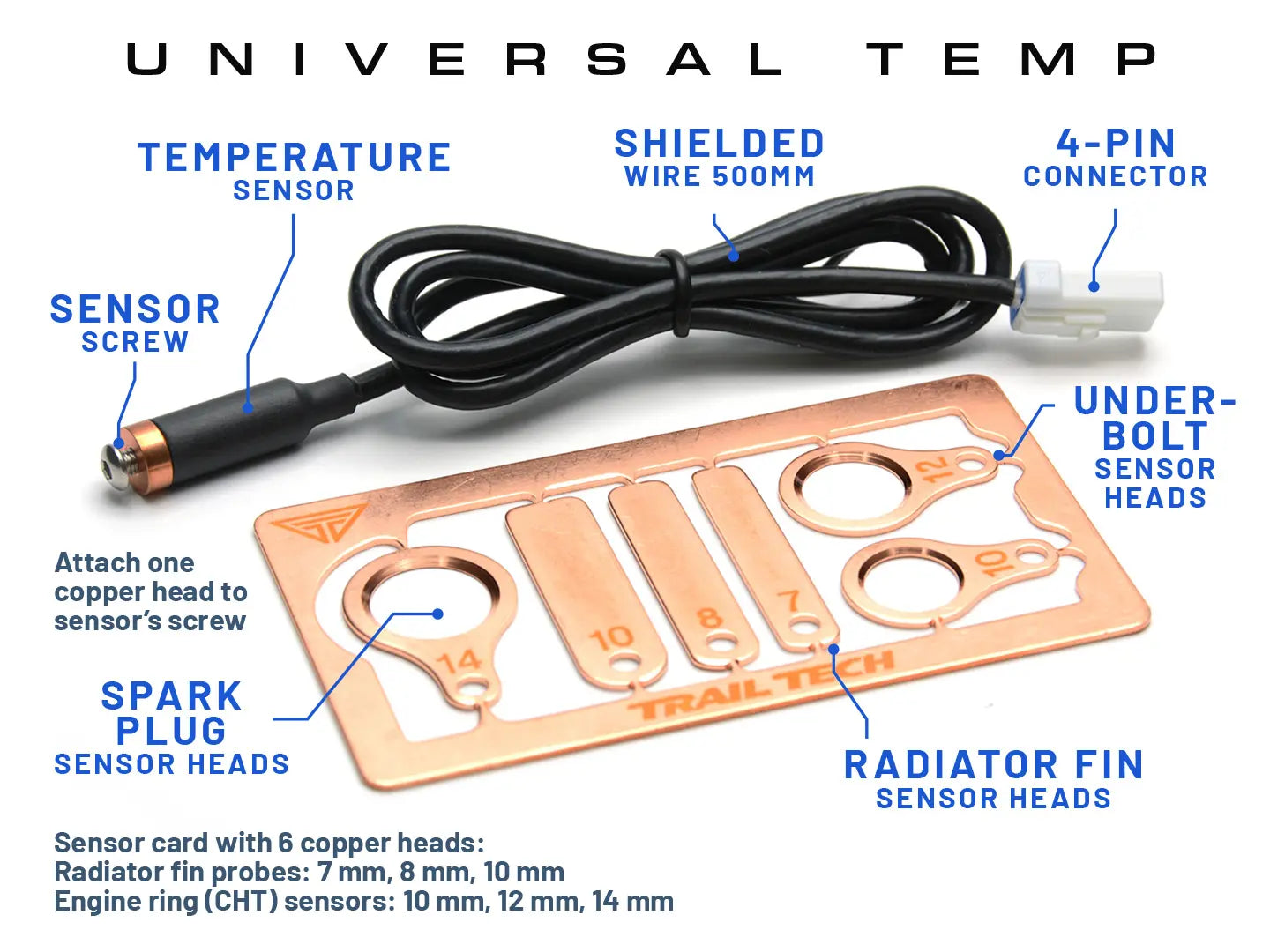

The included 7500-3000 Universal Temperature Sensor gives the motorcycle kit a flexible temperature-input option in one box. Paired with the included 70 in tach sensor, it brings core ride-data inputs onto the same rugged display.
Advanced map options for technical users
VP4 supports GPX, GeoPDF, and Raster MBTiles. Advanced users can build and load their own compatible map files. Available space for custom maps is typically around 2 GB with the default maps installed. If the default maps are replaced, available space for custom maps can increase to about 20 GB.
Buddy Tracking keeps the group visible
Built for off-road riding, Buddy Tracking uses a local radio network between Trail Tech devices. No cell service required.
Up to 20 Riders
Works with No Cell Service
Buddy Tracking & Beacon
Typical range between riders is about 0.5 to 1.5 miles depending on terrain.
Key Specs Summary
- 4.3 in WQVGA display with 1000 nit brightness
- NXP i.MX 6 dual-core applications processor
- u-blox MAX-M10S concurrent multi-GNSS receiver with GPS, GLONASS, Galileo, and BeiDou support
- Plastic quick-release docking station with motorcycle mounting hardware
- 9-16 V DC external power plus internal 3.7 V 3100 mAh Li-ion backup battery
- IP67 environmental rating, Bluetooth 5.1, and microSD support up to 64 GB
- Sub-GHz Buddy Tracking for up to 20 riders, no cell service required, compatible with Polaris RIDE COMMAND Group Ride vehicles
Core Device Specifications
- Head Unit Part Number: 9205-R2
- Display Type: 4.3 in WQVGA TFT LCD, landscape orientation
- Touchscreen Type: Projected capacitive touchscreen
- Display Resolution: 480 x 272 px
- Screen Brightness: 1000 nit
- Application Processor: NXP i.MX 6 dual-core applications processor
- CPU Architecture: Dual-core Arm Cortex-A9
- System Memory: 8 Gb RAM
- Internal Memory: 32 GB
- External Memory Support: microSD up to 64 GB
- External Power Input: 9-16 V DC
- Internal Battery: 3.7 V 3100 mAh Li-ion
- Power Draw, Shutdown: 0 W
- Power Draw, Sleep: 100 mW
- Power Draw, Low: 1.2 W
- Power Draw, Max: 2 W
- Battery Life, Typical Use: 2 hours
- Battery Life, 100% Backlight: 45 minutes
- Battery Charge Time: 6.5 hours
- Charge Temperature Range: 16-45 degrees C (60.8-113 degrees F)
- Environmental Rating: IP67
- Operating Temperature: -10-45 degrees C (14-113 degrees F)
- Storage Temperature: -10-45 degrees C (14-113 degrees F)
- Temperature Display Range: -10-210 degrees C (14-410 degrees F)
- Physical Dimensions: 144 x 90 x 47 mm (5.67 x 3.54 x 1.85 in)
- Physical Weight: 410 g (0.90 lb)
- Mounting Pattern: AMPS 30 x 38 mm
- Dock Style: Hard mount with quick-release
- Certifications / Standards: IP67; FCC; IC; CE
GNSS, Mapping & Recording
- GNSS Chipset: u-blox MAX-M10S
- GNSS Receiver Type: Concurrent multi-GNSS receiver
- Supported Constellations: GPS, GLONASS, Galileo, BeiDou
- GPS Accuracy: 1.5 m
- GPS Update Rate: 10 Hz
- Speed Range: 0-320 km/h
- Distance Range: 0-999,999 km
- Elevation Range: up to 9,000 m
- Accumulated Runtime: 0-99,999 hr
- GPS Record Rate Options: 1, 2, 5 sec / 1, 5, 10 m
- Supported File Types: GPX, GeoPDF, Raster MBTiles
Onboard File Support
- GPX Recording & Export: View your actively recording track on the device and save or export recorded rides as GPX files, including waypoints.
- GPX Import: Import previously exported GPX files or compatible custom GPX files created with route-planning tools.
- GeoPDF: Import georeferenced single-image map overlays. Technical users can create GeoPDFs in GIS software or export them from services that support geospatial PDF maps.
- Raster MBTiles: Import compatible raster MBTiles map packages. Files must be prepared as a single raster layer. MBTiles packages can bundle multiple zoom levels into one offline map for higher detail as you zoom in.
- Custom Map Storage Note: Available space for custom maps is typically around 2 GB with the default maps installed. If the default maps are replaced, available space for custom maps can increase to approximately 20 GB.
Buddy Tracking & Group Ride
- Buddy Tracking Technology: Private rider-to-rider location network using radio signals and GPS
- Group Capacity: Supports up to 20 riders in a single group
- Cell Service Requirement: Not required
- Network Behavior: Riders in the group can pass location updates along, helping dispersed riders stay connected
- Typical Buddy-to-Buddy Range: Approximately 0.5-1.5 miles
- Range Note: Range improves with line of sight and fewer obstructions; terrain, installation, and environmental conditions affect real-world results
- Required Hardware: External V2V antenna required and included in kit
- Antenna Mounting Guidance: Mount the V2V antenna vertically for best performance
- Compatible Group Ride Systems: Buddy Tracking groups are compatible with Polaris RIDE COMMAND Group Ride vehicles
- Buddy View: Shows group members on the map screen with name and location
- Buddy Features: Buddy Tracking, Buddy Tails, Navigate to Buddy, Buddy Beacon
- Buddy Beacon Note: Group-alert / regroup feature only; not a rescue beacon
Wireless, Audio & Interfaces
- Bluetooth Version: 5.1
- Bluetooth Profiles / Functions: HSP, HID
- Bluetooth Phone / Headset Pairing: Music controls, calls, and text alerts with a compatible phone and headset

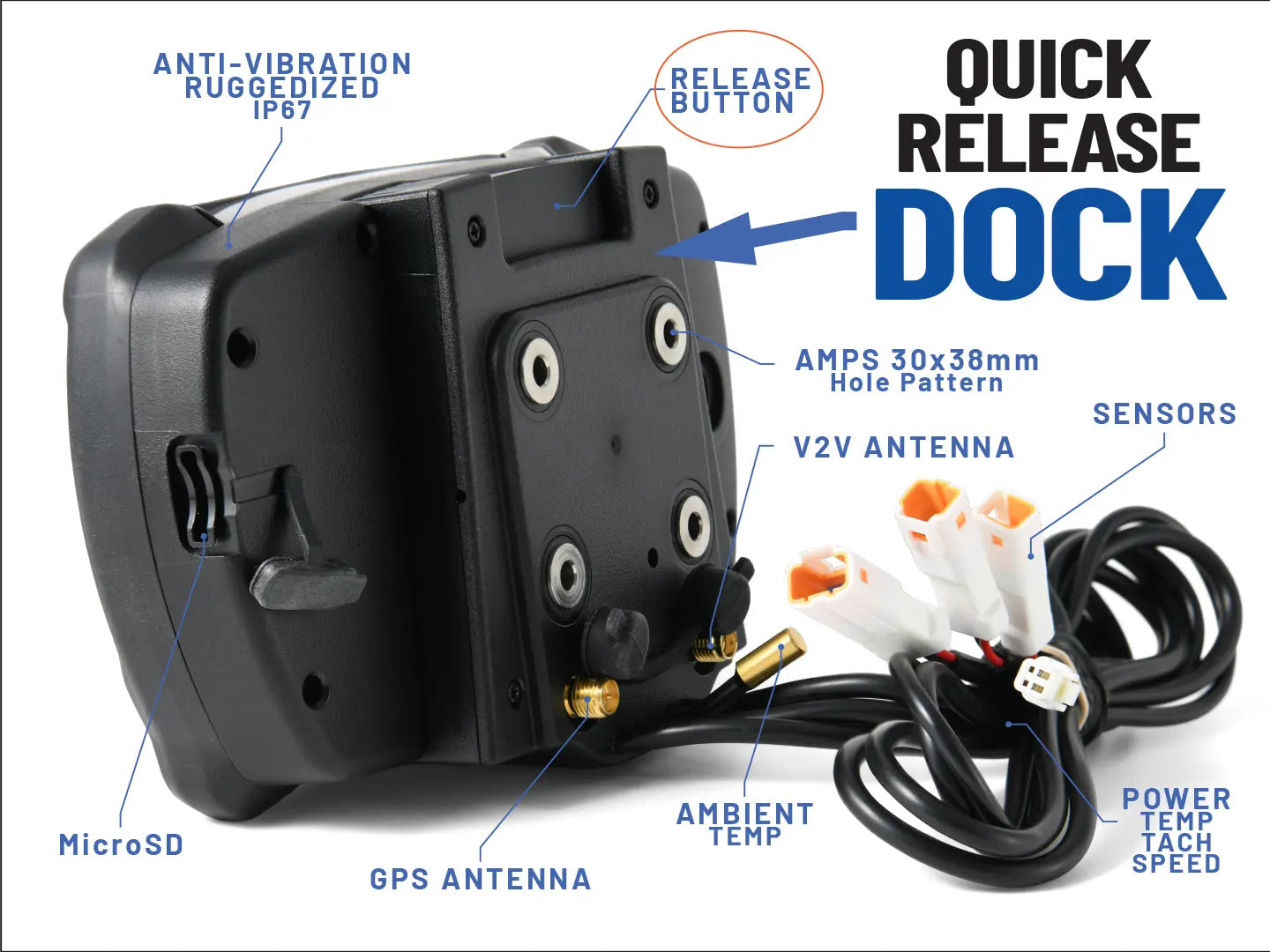

- Dock Connector to Head Unit: Gold pogo pins
- Dock Rear Harness / Sensor Stubs: 4 JST stubs
- Power Connector: Female 3-pin JST
- Buddy Tracking V2V Antenna Connector: SMB (included)
- GPS Booster Antenna Connector: SMB (sold separately)
- Wheel Sensor Connector: Male 2-pin JST (sold separately)
- Tach / Ignition Sensor Connector: Female 2-pin JST
- Temperature Sensor Connector: Female 4-pin JST
- Ambient Temperature Sensor: Integrated short-stub sensor on dock

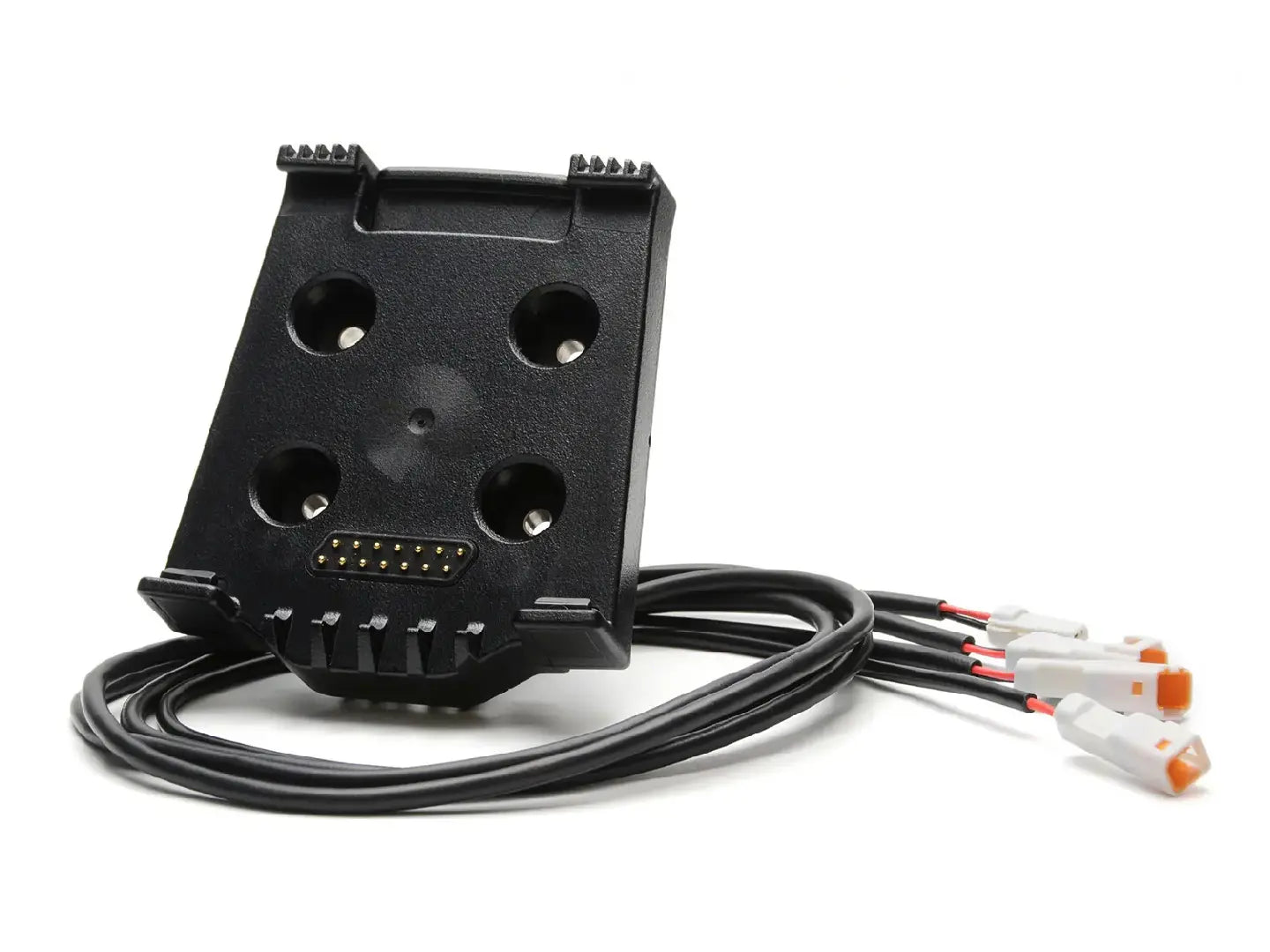

MOTO Kit Dock, Mount & Fitment
- Dock Part Number: 9200-DOCK
- Dock Material: Plastic
- Dock Release Style: Quick-release hard mount

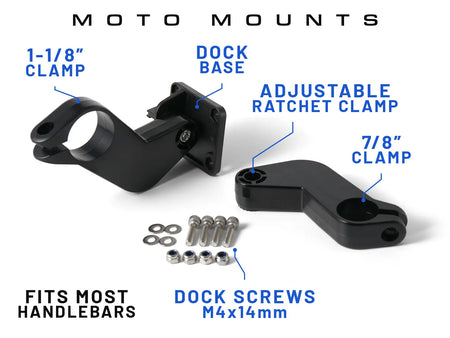

- Handlebar Mounting AMPS Plate: Included
- Handlebar Mounting Hardware: 9200-BKPK
- Buddy Tracking Antenna: 9200-V2V1
- Power Wire: 9000-1011 (48 in)
- Tach Sensor: 9000-1021 (70 in)
- Temperature Sensor: 7500-3000 Universal Temperature Sensor
- Intended Vehicle Type: Dirt bike / dual-sport / adventure motorcycle
- Compatibility / Fitment: Dirt bikes, dual-sport motorcycles, and adventure motorcycles with regulated 9-16 V DC power
- Mounting Type: Handlebar / AMPS hard mount
Main Unit
- 9205-R2: Voyager Pro 4 Head Unit
- 9200-DOCK: Quick-Release Docking Station

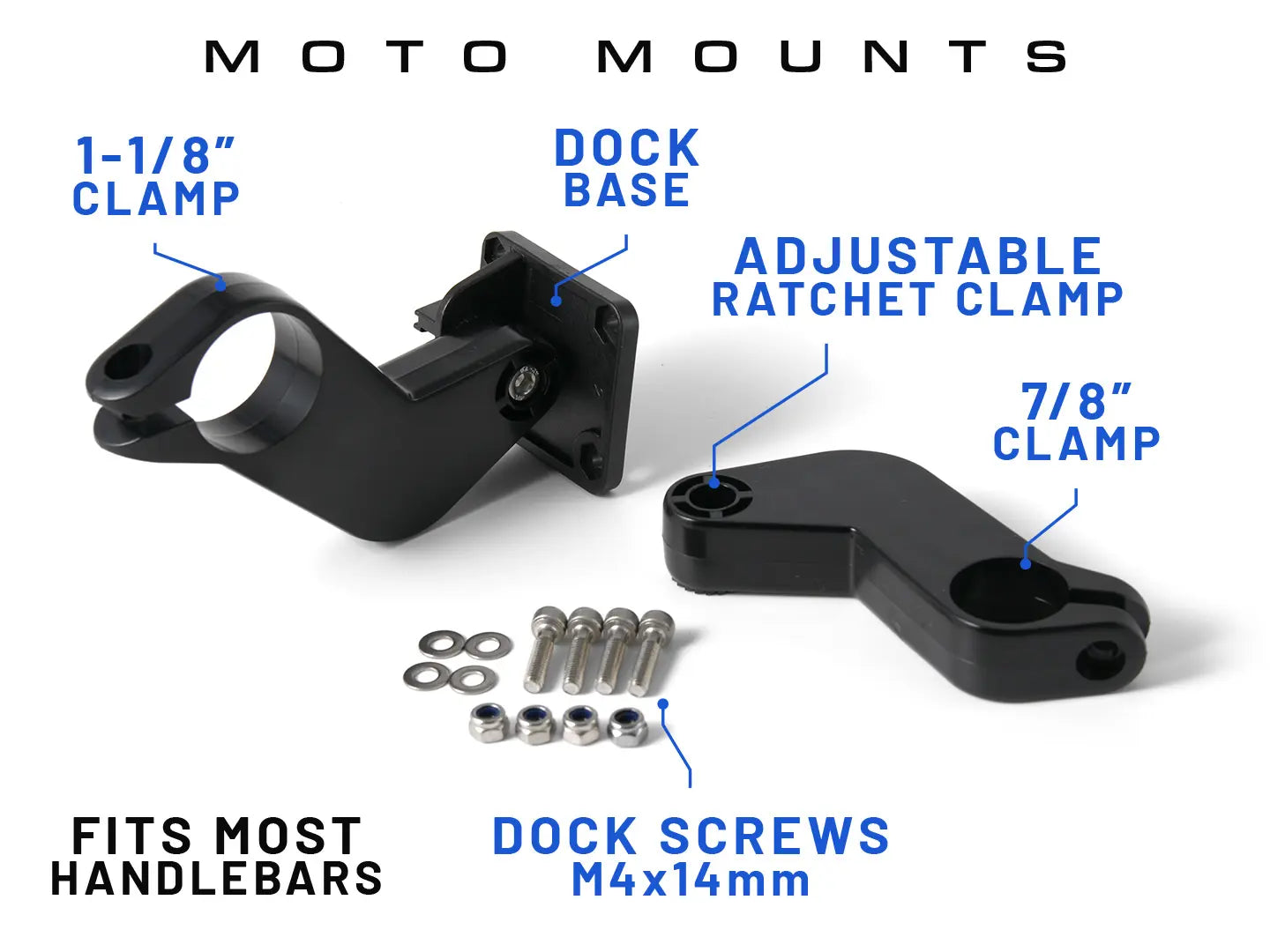

Mounting Hardware
- Handlebar Mounting AMPS Plate: Included
- 9200-BKPK: Plastic Handlebar Mounting Hardware
Wiring, Antennas & Sensors
- 9200-V2V1: Buddy Tracking V2V Antenna (included)
- 9000-1011: Power Wire (48 in)
- 9000-1021: Tach Sensor (70 in)
- 7500-3000: Universal Temperature Sensor
Small Parts & Extras
- 010-TTKC: Trail Tech Keychain
- TTST-165-BK: Trail Tech Sticker
Documentation
- 010-ELV-VP4: Quick-Start Postcard
Optional Accessories
- GPS Booster Antenna: Sold separately
- Wheel Sensors: Sold separately
- 027-PR2: Voyager Pro4 Protector, Center Bar Mount (CNC Aluminum Head Unit Guard)
- 027-IDB: Voyager Pro4 Protector + CNC 4-Light Indicator Wing Bundle
- 9205-SHIELD: Voyager Pro4 Screen Protector
- DC Regulator / Conversion Hardware: Required for AC-only motorcycles and not included
REPLACEMENT PARTS / RELATED ITEMS
- Compatible SKUs: 9205-R2; 9200-DOCK; 9200-V2V1; 9000-1021; 7500-3000
- Related Products: Voyager Pro4 SNOW Kit; Voyager Pro4 UTV Kit; 027-PR2 Voyager Pro4 Protector, Center Bar Mount; 9205-SHIELD Voyager Pro4 Screen Protector
- 9200-DOCK: Quick-Release Docking Station
- 9200-V2V1: Buddy Tracking V2V Antenna
- 9000-1021: Tach Sensor (70 in)
- 7500-3000: Universal Temperature Sensor
FAQs
Voyager Pro4 is Trail Tech's off-road GPS display for Buddy Tracking, navigation, vehicle information, Bluetooth phone / headset pairing, and ride logging. It is sold in UTV, SNOW, and MOTO kits with machine-specific install hardware.

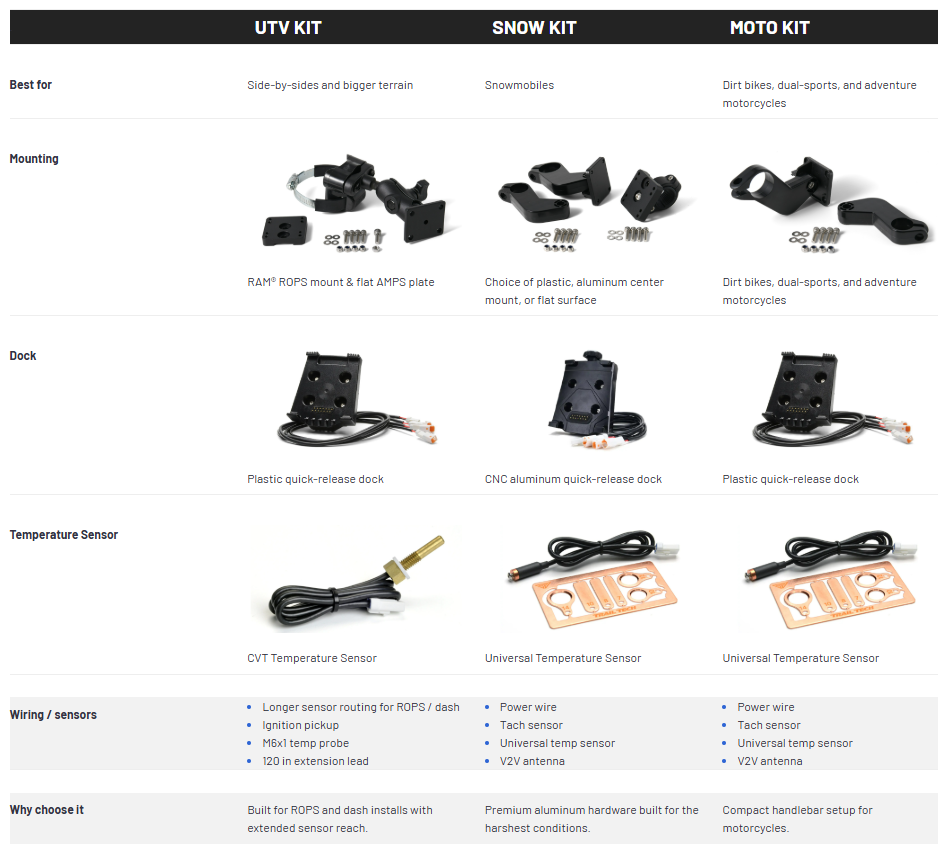

All three kits use the same VP4 head unit. The kit hardware changes. UTV is built around ROPS / dash mounting and longer sensor routing. SNOW is the premium snowmobile package with a CNC aluminum dock and aluminum center mount. MOTO is the compact motorcycle package for dirt bikes, dual-sports, and adventure bikes.
No. Buddy Tracking uses radio signals plus GPS, so it does not rely on cell service for rider-to-rider tracking.
VP4 Buddy Tracking supports up to 20 riders in one group.
Typical buddy-to-buddy range is about 0.5 to 1.5 miles. Range depends on terrain, line of sight, obstructions, antenna placement, installation, and riding conditions. Riders in between can help pass location updates through the group.
VP4 supports Buddy Tracking, Buddy Tails, Navigate to Buddy, and Buddy Beacon regroup messaging.
Yes. Buddy Tracking groups are compatible with Polaris RIDE COMMAND Group Ride vehicles.
VP4 supports GPX, GeoPDF, and Raster MBTiles.
Yes. Riders can load compatible GPX, GeoPDF, and Raster MBTiles files. Available space for custom maps is typically about 2 GB with the default maps installed and can increase to about 20 GB if the default maps are replaced.
Yes. VP4 combines mapping, ride logging, vehicle information, Bluetooth audio controls, calls, and text alerts in one dedicated off-road display.
No. Buddy Beacon is a regroup / alert feature for your group. It is not a rescue beacon.
