X-Trig ROCS Tech Clamp Set 2013-23 KTM 125-500 22mm Offset | 40505005
$ 853.95
Description
Complete with PHDS

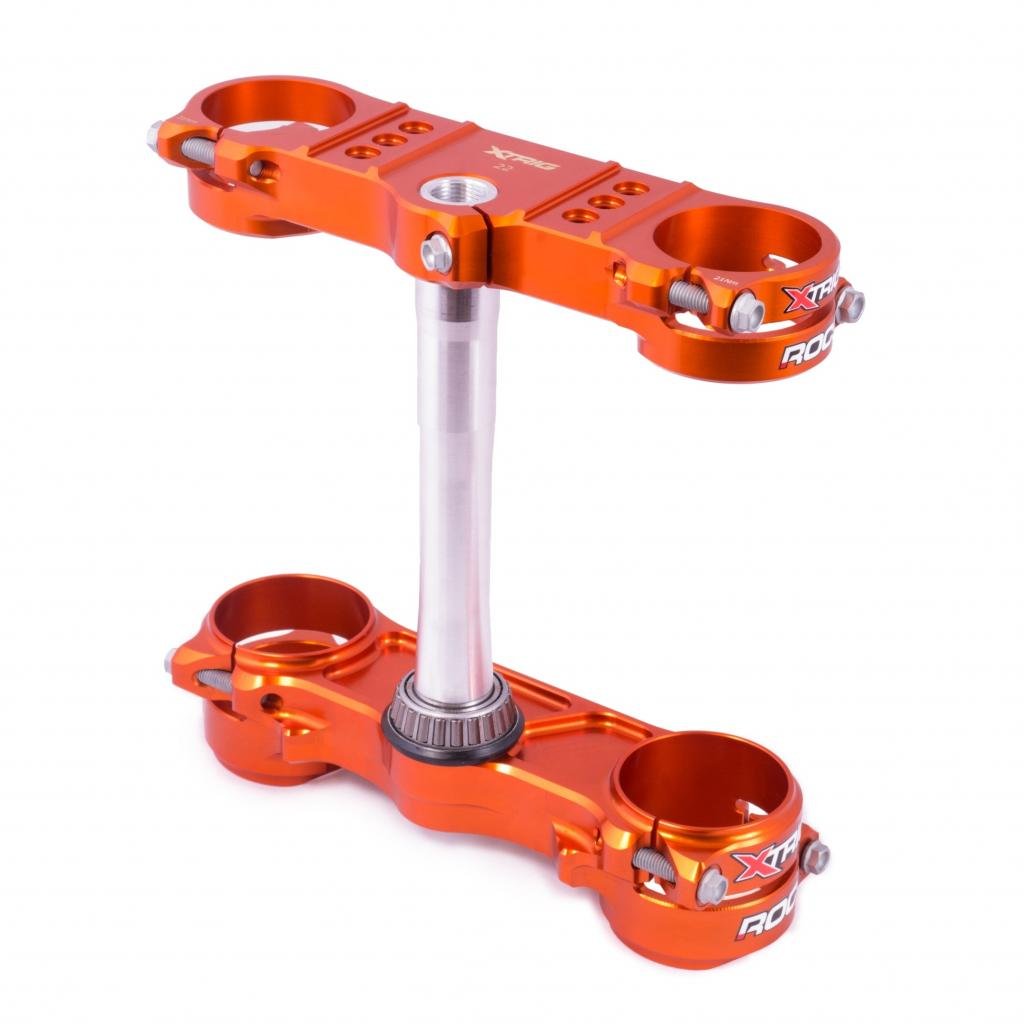

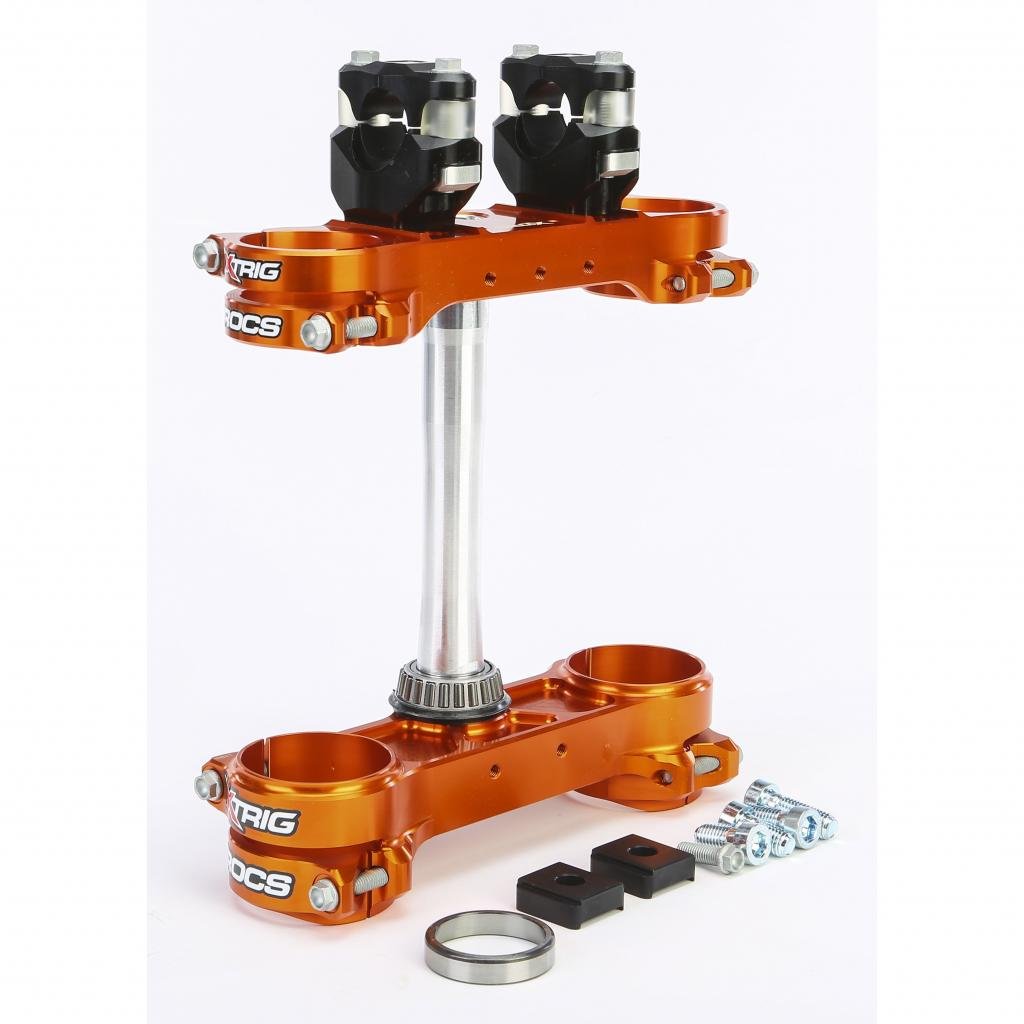

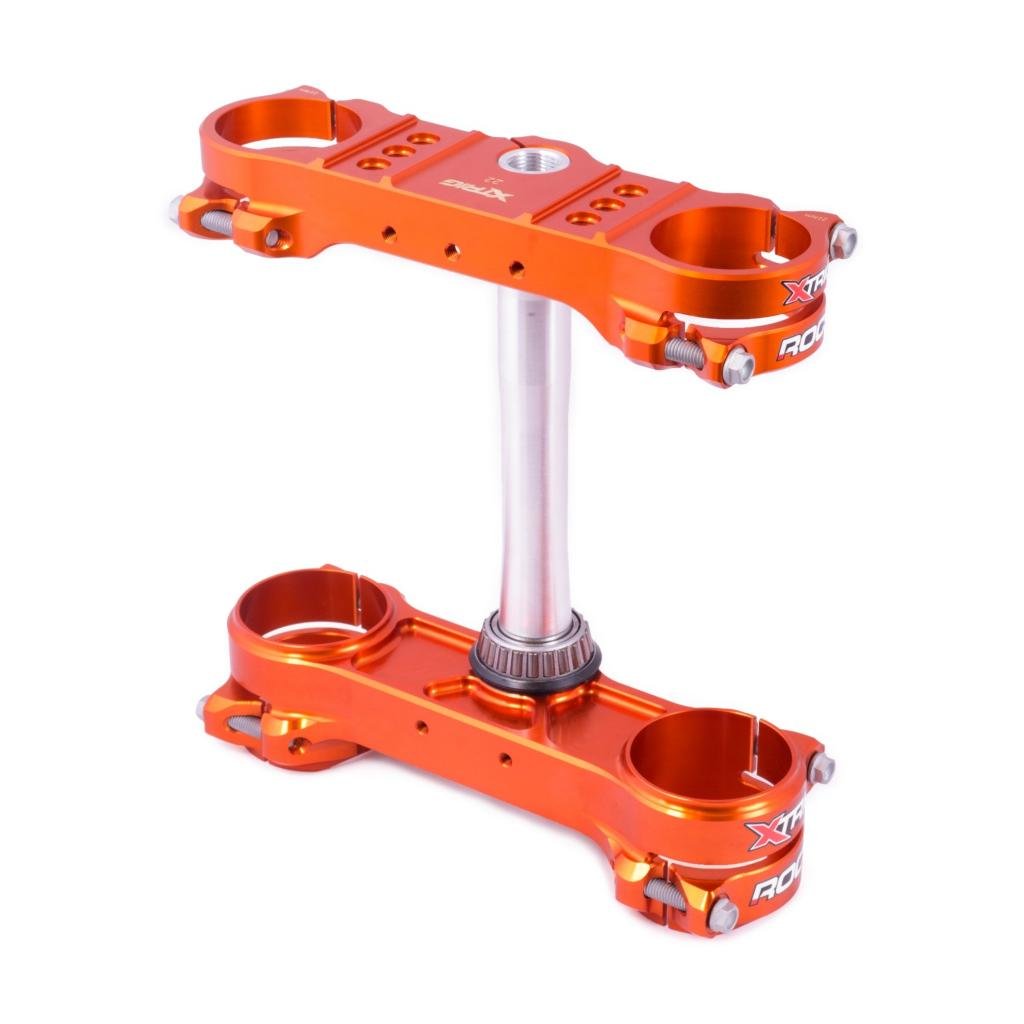

ROCS tech triple clamp kit
offset 22mm
color: orange
Fitment:
KTM SX 125 / 150 / 250 (2013 - 2022)
KTM SX-F 250 / 350 / 450 (2013 - 2022)
KTM EXC / EXC TPI / EXC-F (2014 - 2023)
KTM XC / XC TPI / XC-F (2014 - 2022)
KTM XC-W / XC-W TPI / XCF-W (2014 - 2023)
• Original Offset KTM
SX / SX-F / XC / XC TPI / XC-F (offset 22 mm)
EXC / EXC-F 2013-2015 (offset 20 mm)
EXC / EXC TPI / EXC-F 2016-2023 (offset 22 mm)
XC-W / XCF-W 2013-2015 (offset 20 mm)
XC-W / XC-W TPI / XCF-W 2016-2023 (offset 22 mm)
ROCS TRIPLE CLAMP
The Revolutionary Opposing Clamp System, ROCS for short, was one of the most spectacular and elaborate developments by XTRIG in recent years. The advantages of this system compared to a conventional triple clamp are the lower deformation of the fork stanchions in the clamping area, which has a noticeable effect on the response of the fork but also the design with the two opposing clamps, which ensure more security against twisting of the fork by the self-locking effect. Another advantage is the fact that the clamping screws do not influence each other and thus a more precise tightening torque can be achieved. Since there is no material between the clamping screws, ROCS - triple clamps also have a lower weight in comparison.
ROCS Tech
- Standard offset of the respective manufacturer
- Firmly pressed in steerer stem
- Mounting with original nuts and washers
Flex is the interaction of the stiffness and flexibility of the triple clamp. This is an important factor for the function of the fork.
Offset is the term used to describe how far the front axle is ‘offset’ from the steering axis. Bikes with a large offset are easier to handle. Smaller offsets guarantee steering precision.
The steering head angle is the angle of the steering axis to the ground. It is a result of the geometry of the frame and cannot be adjusted.
The distance between the wheel-to-ground contact point and the projected steering axis is known as the ‘trail’. The greater the offset – the smaller the trail, making the bike easier to handle. The more the offset is reduced, the greater the trail becomes – keeping you in your lines.
The balance of a bike is all about the weight distribution between the front and back wheels.
The range of options for adapting a bike is limited. This is of great importance to particularly tall or short motorcyclists. Bike balance is also influenced by the steering set-up as it shifts the biker’s canter of gravity.
It is necessary to differentiate between static and dynamic suspension travel. Static travel refers to the distance the bike rear travels from full extension to its natural suspension limit under its own weight. According to manufacturer stats, for bikes with swing deflection the distance should be between 25 and 40mm.
Dynamic travel is measured with the mounted rider. The manufacturer recommends travel from full extension to a natural suspension position under the weight of the rider of 102mm.
Torque is measured in Nm (newton-meters). Adherence to stipulated guidelines is obligatory. Too much or too little torque can have a marked influence on the performance of forks.
Fork bridge cleaners should preferably have a low pH value, since alkaline cleaning agents can encourage corrosion. After cleaning, we recommend rubbing down the fork bridge and other aluminum parts with a cloth and neutral preservative oil.
Triple clamps are usually made of aluminum. XTRIG uses a high-strength, ultrasonically tested alloy that is specially manufactured for them.
