Baja Designs XL Pro LED Auxiliary Light Pod Pair
Product Details
- Type LED Light Pods
- Vendor Baja Designs
- SKU 507801
- Shipping Weight 0.0 lb
The Baja Designs XL Pro auxiliary light pair is designed to illuminate the terrain ahead, offering a powerful lighting solution for off-road enthusiasts who need exceptional brightness in a versatile package. Featuring Baja Designs' trademarked high-speed spot reflectors, the XL Pro provides a longer and wider beam pattern using next-generation LED technology that delivers 65% greater distance than its predecessor while pushing 4,095 raw lumens per light.
Built for durability, the XL Pro also includes a 20% dimming feature, making it ideal for trucks, vans, UTVs, and motorcycles. The two-light kit comes complete with a wiring harness and all necessary mounting hardware, allowing for a quick and easy installation. Designed for those seeking reliable off-road lighting, Baja Designs lights are backed by a 30-day satisfaction guarantee and a limited lifetime warranty, ensuring complete purchase protection.
ELS™ Scores:
XL Pro Driving Combo (Clear): ELS 88°/ 6.6/ 432'/ 3764
XL Pro Spot (Clear): ELS 60°/ 4.1/ 498'/ 3228
XL Pro Wide Cornering (Clear): ELS 102°/ 5.8/ 162'/ 3363
Lens Pattern Options:

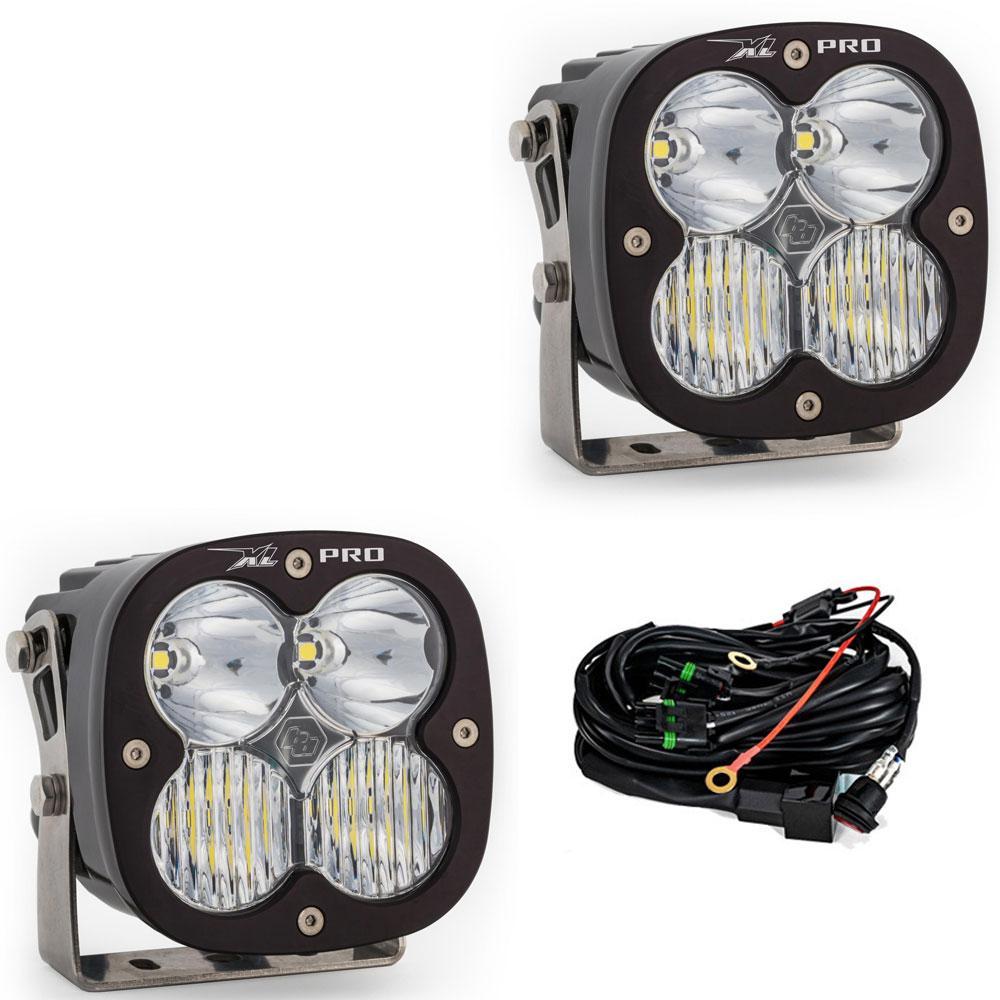

Driving Combo: Offers maximum trail coverage with a blend of driving and spot optics, providing near-field visibility in lighting zones 1 and 2, and distance coverage in zone 3.

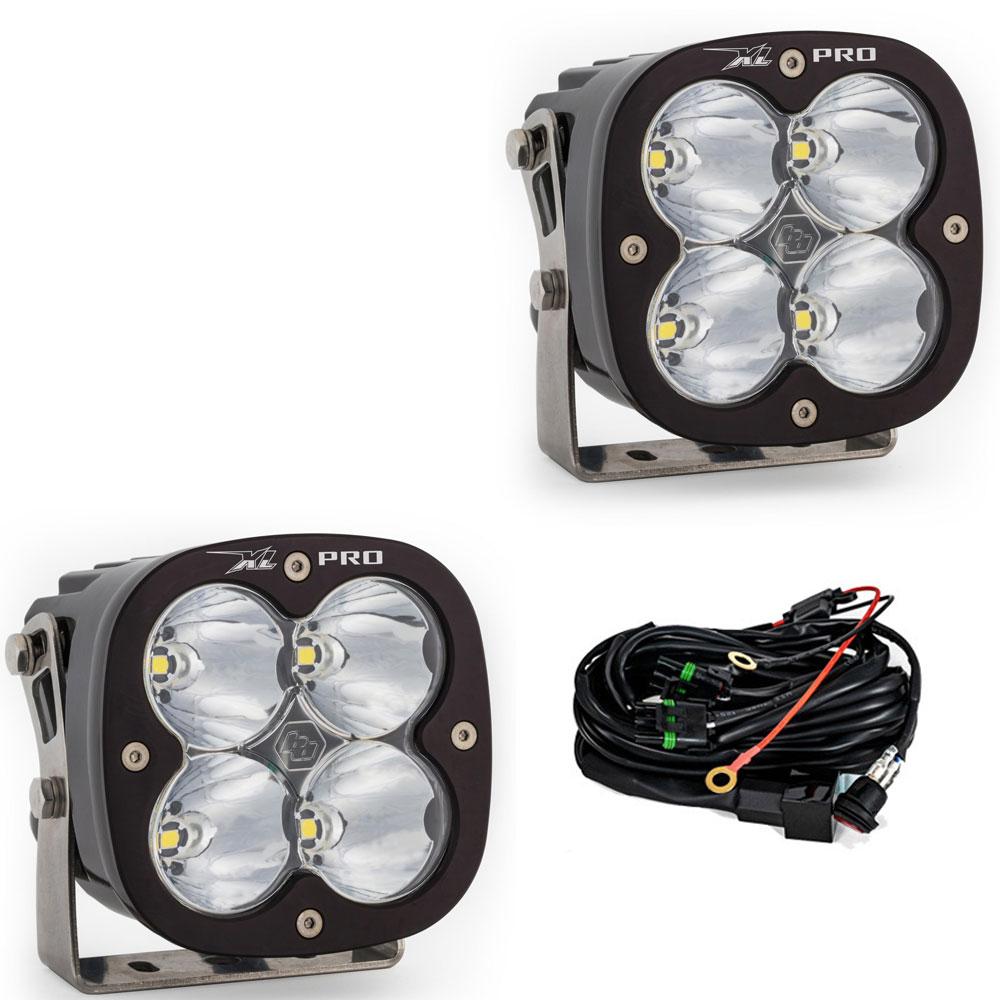

Spot: A 9-degree narrow focus beam for long-distance illumination, ideal for use with additional Wide Cornering and/or Driving Combo beams.

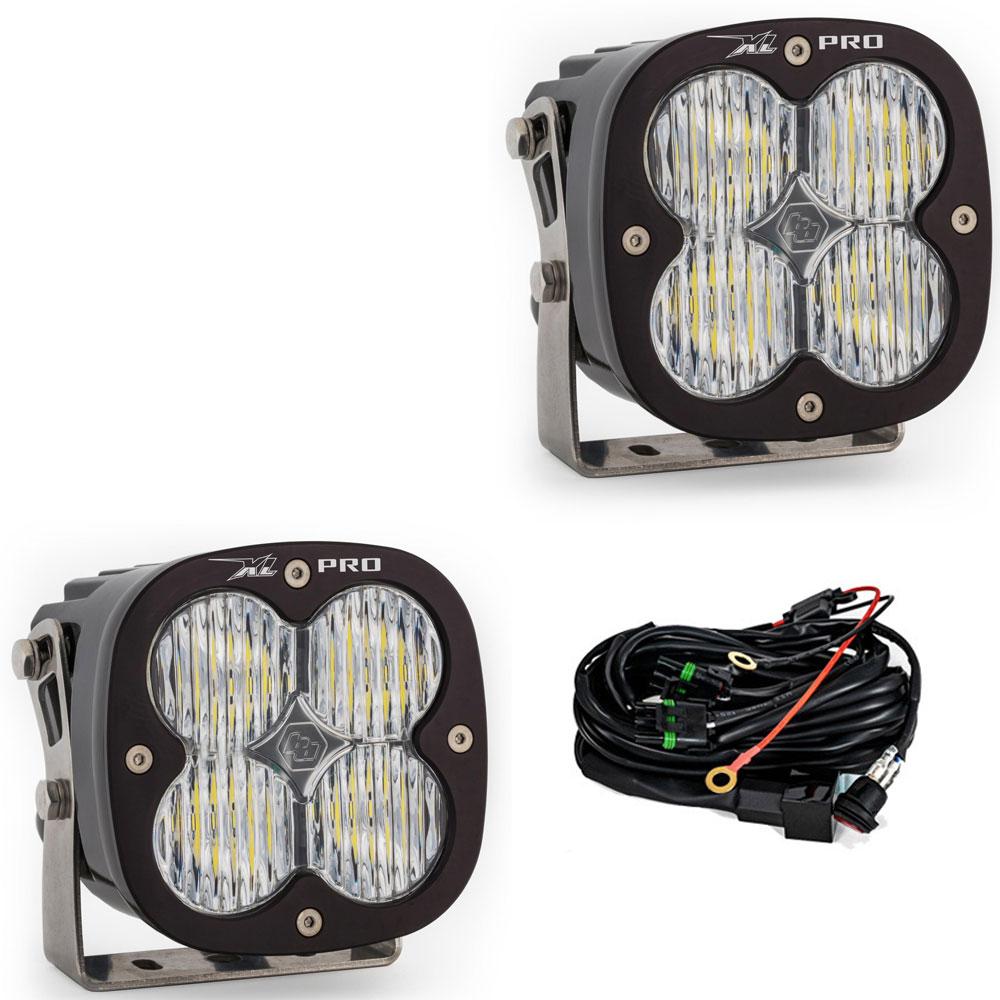

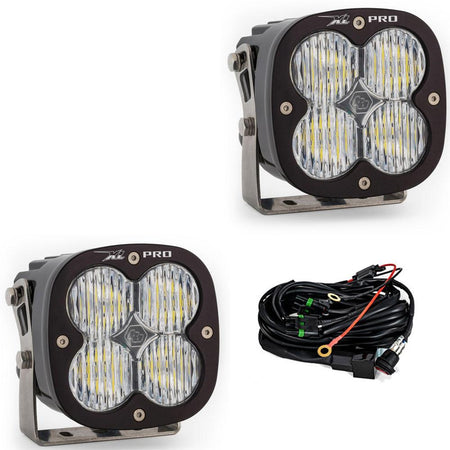

Wide Cornering: A 42-degree flattened horizontal beam for enhanced peripheral visibility, perfect for inclement weather and tight trails, ensuring better navigation through obstacles.
Key Features:
Satisfaction Guarantee: 30-Day Money-Back Guarantee
Limited Lifetime Warranty: Complete Purchase Protection
uService: Replaceable Lenses and Optics
ClearView: All the light, right where you need it
MoistureBlock: Waterproof, rainproof, and submersible
CopperDrive: The only LED driven at 100% capacity
5000K Daylight: Reduces driver fatigue with natural color lighting
Elevate your off-road experience with the Baja Designs XL Pro, engineered for reliability, performance, and ease of use.
Specifications
| Wattage (W) | 41.400 |
| Universal or Specific | Universal |
| Product Type | XL Pro LED Light Pod Pair w/ Wiring Harness |
| Overvoltage Protection | Built-In |
| Mounting Hardware Material | Stainless Steel |
| Mounting Hardware Included | Yes |
| Lighting Type | Forward Projecting |
| Wiring Harness Included | Yes |
| Lighting Technology | Cree XP-L LED |
| Lighting Quantity | 4 |
| Light Quantity | 2 |
| Lighting Modes | High Beam/Dimming Feature (20%) |
| Lens Material | Hardcoated Polycarbonate |
| Lens Color | Clear |
| Housing Material | Hard Anodized and Powder Coated Cast Aluminum |
| Housing Color | Black |
| Description | Spot; Clear; Pair |
| Brightness (Lumens) | 4095 |
| Bezel Material | Powder Coated Cast Aluminum |
| Beam Pattern | Spot |
| Average Rated Life (hr.) | 49,930 |
| Amperage Rating (A) | 3 |
Standards & Compliance
| Standards/Compliance (Water Resistance) | IP69K (Waterproof up to 9ft & Pressure Washable) |
| Standards/Compliance (Impact Resistance) | IK10 Compliant (Mechanical Impact Testing) |
| Standards/Compliance (Durability) | Exceeds MIL-STD810G (Mil-Spec Testing) |
Dimensions
| Weight (lbs.) | 2.450 |
| Length (in.) | 4.430 |
| Height (in.) | 4.430 |
| Depth (in.) | 3.650 |
LIGHTING ZONES/ LENS PATTERNS/ COLORS
-
Driving Combo
Maximum trail coverage in a single light. The Driving/Combo pattern is equipped with both Driving (42-degree) and spot (9-degree) optics to provide you with a smooth blend of light for both near field applications and distance.
-
Spot
A longer and narrower 9-degree beam focus for illumination further down the trail or road. The Spot pattern is designed to be used in conjunction with additional Wide Driving and/or Driving/Combo beam lights.
-
Wide Cornering
The Wide Driving pattern offers a 42-degree flattened horizontal beam for the ultimate in comfort lighting. This pattern is specifically for cornering, dust, snow, rain, and/or fog conditions.
-
Work/Scene
Excellent work light or “scene light” with an extremely smooth 120° circle that projects about 40ft. This pattern is not suitable for driving.
-
Trail
Designed to aid in both vertical and horizontal light spread. Provides more near and mid-field visibility in tight slower technical terrain. (S1 only)
-
-
Clear
The original performance lens. Our clear lens combined with our 5000k LEDs provides light most similar to daylight, reducing driver fatigue and increasing terrain recognition.
-
Baja Amber
This performance-driven lens is designed for off-road driving in challenging conditions like dust, rain, snow, or fog. The Baja Amber lens minimizes glare, enhancing visibility and significantly improving your driving experience.
-
Factory Amber
This replacement lens option is crafted to seamlessly match the OEM running lights found on vehicles today. Factory Amber provides a color temperature that is best utilized in low-visibility conditions to increase depth perception while minimizing glare.
-
ZONES
-
Dust/Fog
Illuminates the area directly in front of the vehicle, for use during rainy, snowy, or dusty conditions.
Automotive, Motorcycle, UTV
-
Cornering
Provides cornering and peripheral light, which is necessary to drive comfortably at speed.
Automotive, Motorcycle, UTV
-
Driving Combo
Your primary driving light and most important zone to start with when building a balanced lighting package.
Automotive, Motorcycle, UTV
-
Spot
This zone is your first level of long-distance lighting. Lights intended for this zone will give you the distance needed to travel at speeds and see safely down the road or trail.
Automotive, Motorcycle, UTV
-
Racer Edition Spot
This zone is implemented when approaching triple-digit speeds, or in instances when distance penetration becomes necessary.
Automotive, Motorcycle, UTV
-
Rock Light
This zone illuminates the wheel wells, undercarriage, or any other part of the vehicle that can benefit from great visibility while moving through tight spaces and jagged terrain.
Automotive, UTV
-
Cargo
This zone is important for drivers that need quick access to tools and cargo, in and immediately around the vehicle.
Automotive, UTV
-
Backup/Reverse
This zone is crucial to keeping the backside of your vehicle safe. Whether reversing on the trail or leading a pack through the dust, you will want the correct lighting solution.
Automotive, UTV
-
Laser Series
This zone is one of the last additions to your lighting package. When you have optimized your entire package and still need that extra punch in the distance, make sure to check out the ultimate distance lighting available today.
Automotive, UTV
