Baja Designs XL-R Pro LED Auxiliary Light Pod
SPECIAL ORDER
Please allow 1 - 3 weeks for this item to fulfill.
Product Details
- Type LED Light Pods
- Vendor Baja Designs
- SKU 530013
- Shipping Weight 0.0 lb
The Baja Designs XL-R Pro auxiliary light offers an exceptional balance of affordability and performance, making it the ideal choice for off-road enthusiasts. Equipped with a round outer bezel, the XL-R Pro utilizes Baja Designs' trademarked high-speed spot reflectors, delivering a longer and wider beam pattern. Featuring next-generation LEDs, this light outputs an impressive 4,095 raw lumens per light, providing the perfect auxiliary lighting for vehicles such as trucks, vans, UTVs, and motorcycles.
This single light kit comes with XL mounting hardware, allowing for quick and easy installation. Please note that the wiring harness is not included; compatible options are the 640115 (On/Off 3-pin) or 640119 (On/Off with Hi-Lo switch). Baja Designs lights are designed for reliability and durability, backed by a 30-day satisfaction guarantee and a limited lifetime warranty for ultimate peace of mind.
ELS™ Scores:
XL Pro Driving Combo (Clear): ELS 88°/ 6.6/ 432'/ 3764
XL Pro Spot (Clear): ELS 60°/ 4.1/ 498'/ 3228
XL Pro Wide Cornering (Clear): ELS 102°/ 5.8/ 162'/ 3363
Lens Pattern Options:
Driving Combo: Provides maximum trail coverage with a blend of driving and spot optics, ideal for near-field applications (zones 1 and 2) and distance (zone 3).
Spot: A focused 9-degree beam for long-distance illumination, designed to work with additional Wide Cornering and/or Driving Combo lights.
Wide Cornering: A 42-degree flattened horizontal beam that enhances peripheral visibility and reduces blind spots, perfect for navigating tight trails, inclement weather, and spotting obstacles on the trail.
Key Features:
Satisfaction Guarantee: 30-Day Money Back Guarantee
Limited Lifetime Warranty: Complete Purchase Protection
uService: Replaceable Lenses and Optics
ClearView: All The Light, Right Where You Need It
MoistureBlock: Waterproof, rainproof, and submersible
CopperDrive: The only LED driven at 100% capacity
5000K Daylight: Reduces driver fatigue with natural color lighting
The Baja Designs XL-R Pro auxiliary light delivers reliable and powerful performance, ensuring you're ready for any off-road adventure.
Standards & Compliance
| Standards/Compliance (Impact Resistance) | IK10 Compliant (Mechanical Impact Testing) |
| Standards/Compliance (Durability) | Exceeds MIL-STD810G (Mil-Spec Testing) |
| Standards/Compliance (Water Resistance) | IP69K (Waterproof up to 9ft & Pressure Washable) |
Specifications
| Wiring Harness Included | No |
| Wattage (W) | 40 |
| Universal or Specific | Universal |
| Product Type | XL-R Pro LED Light Pod |
| Overvoltage Protection | Built-In |
| Mounting Hardware Material | Stainless Steel |
| Mounting Hardware Included | Yes |
| Lighting Type | Forward Projecting |
| Lighting Technology | Cree XP-L LED |
| Lighting Quantity | 4 |
| Lighting Modes | High Beam/Dimming Feature (20%) |
| Light Quantity | 1 |
| Lens Material | Hardcoated Polycarbonate |
| Lens Color | Clear |
| Housing Material | Hard Anodized and Powder Coated Cast Aluminum |
| Housing Color | Black |
| Description | Round; Spot; Clear |
| Brightness (Lumens) | 4,900 |
| Bezel Material | Powder Coated Cast Aluminum |
| Beam Pattern | Spot |
| Average Rated Life (hr.) | 49,930 |
| Amperage Rating (A) | 2.9 |
Dimensions
| Depth (in.) | 3.65 |
| Height (in.) | 5.24 |
| Weight (lbs.) | 2.45 |
| Length (in.) | 5.24 |
LIGHTING ZONES/ LENS PATTERNS/ COLORS
-

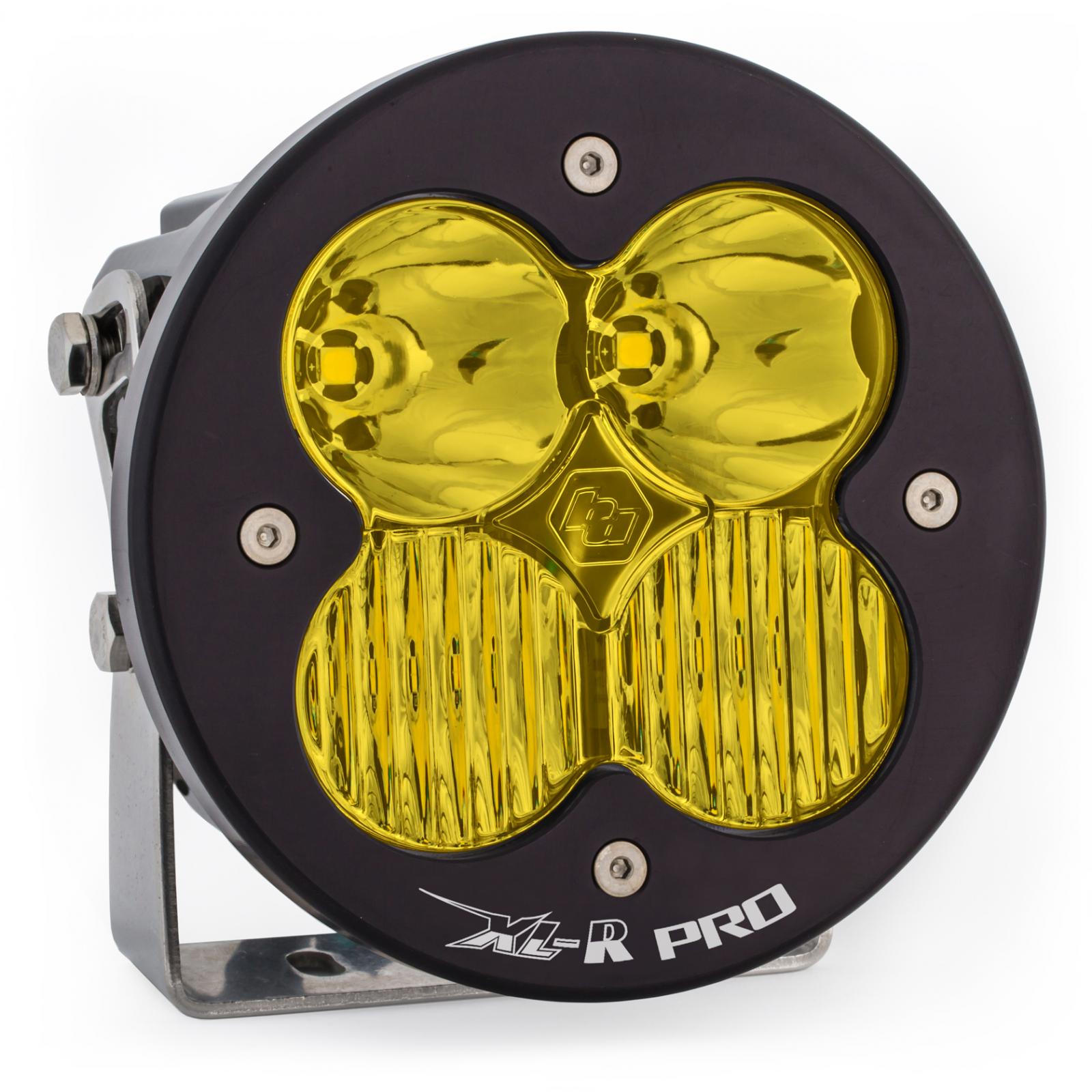

Driving Combo
Maximum trail coverage in a single light. The Driving/Combo pattern is equipped with both Driving (42-degree) and spot (9-degree) optics to provide you with a smooth blend of light for both near field applications and distance.
-
Spot
A longer and narrower 9-degree beam focus for illumination further down the trail or road. The Spot pattern is designed to be used in conjunction with additional Wide Driving and/or Driving/Combo beam lights.
-
Wide Cornering
The Wide Driving pattern offers a 42-degree flattened horizontal beam for the ultimate in comfort lighting. This pattern is specifically for cornering, dust, snow, rain, and/or fog conditions.
-
Work/Scene
Excellent work light or “scene light” with an extremely smooth 120° circle that projects about 40ft. This pattern is not suitable for driving.
-
Trail
Designed to aid in both vertical and horizontal light spread. Provides more near and mid-field visibility in tight slower technical terrain. (S1 only)
-
-
Clear
The original performance lens. Our clear lens combined with our 5000k LEDs provides light most similar to daylight, reducing driver fatigue and increasing terrain recognition.
-
Baja Amber
This performance-driven lens is designed for off-road driving in challenging conditions like dust, rain, snow, or fog. The Baja Amber lens minimizes glare, enhancing visibility and significantly improving your driving experience.
-
Factory Amber
This replacement lens option is crafted to seamlessly match the OEM running lights found on vehicles today. Factory Amber provides a color temperature that is best utilized in low-visibility conditions to increase depth perception while minimizing glare.
-
ZONES
-
Dust/Fog
Illuminates the area directly in front of the vehicle, for use during rainy, snowy, or dusty conditions.
Automotive, Motorcycle, UTV
-
Cornering
Provides cornering and peripheral light, which is necessary to drive comfortably at speed.
Automotive, Motorcycle, UTV
-
Driving Combo
Your primary driving light and most important zone to start with when building a balanced lighting package.
Automotive, Motorcycle, UTV
-
Spot
This zone is your first level of long-distance lighting. Lights intended for this zone will give you the distance needed to travel at speeds and see safely down the road or trail.
Automotive, Motorcycle, UTV
-
Racer Edition Spot
This zone is implemented when approaching triple-digit speeds, or in instances when distance penetration becomes necessary.
Automotive, Motorcycle, UTV
-
Rock Light
This zone illuminates the wheel wells, undercarriage, or any other part of the vehicle that can benefit from great visibility while moving through tight spaces and jagged terrain.
Automotive, UTV
-
Cargo
This zone is important for drivers that need quick access to tools and cargo, in and immediately around the vehicle.
Automotive, UTV
-
Backup/Reverse
This zone is crucial to keeping the backside of your vehicle safe. Whether reversing on the trail or leading a pack through the dust, you will want the correct lighting solution.
Automotive, UTV
-
Laser Series
This zone is one of the last additions to your lighting package. When you have optimized your entire package and still need that extra punch in the distance, make sure to check out the ultimate distance lighting available today.
Automotive, UTV
